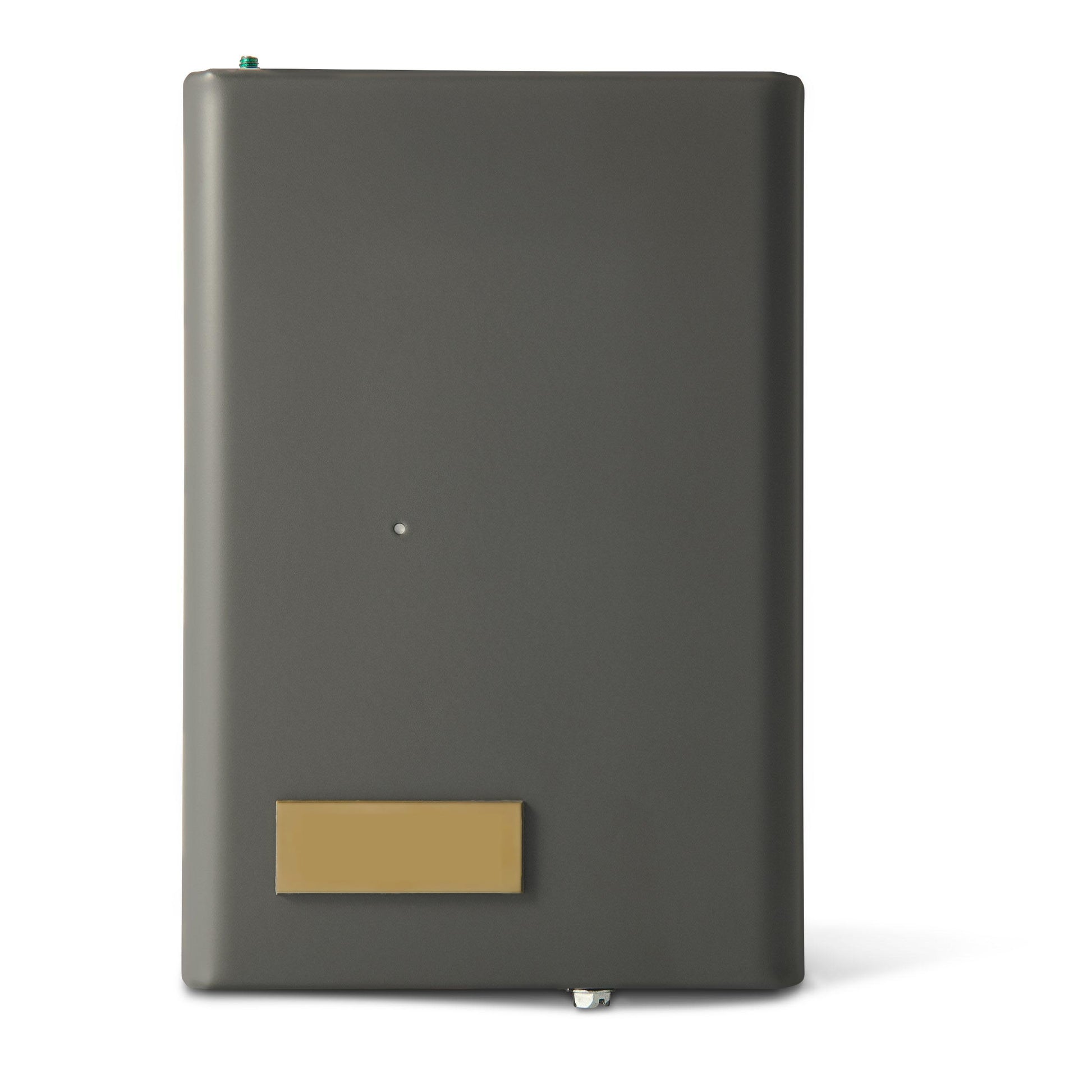

HONEYWELL RESIDENTIAL L8124A1007 Hydronic Control Relay

Hydronic Control Relay; Item Control Relay; Type Multi-Function; Switch Type SPST (High Limit), SPDT (Low Limit and Circulator Control); Overall Dimensions 4-3/8 Inch Width x 3-1/16 Inch Depth x 6-1/8 Inch Height; Input Supply Rating 120 Volt AC at 60 Hertz; Temperature Rating 130 to 240 Deg F (High Limit), 110 to 220 Deg F (Low Limit); Pressure Rating 200 PSI (Immersion Well); Media Handled Hot Water; Inclusions/Features High Limit Protection, Low Limit and Circulation Control, Diaphragm Powerhead; Application Domestic Hydronic Heating System; Applicable Standard UL, CSA; Insulation Depth 1-1/2 Inch; Mounting Position Vertical; Connection Type Quick Connect/Screw; Humidity 0 to 95 Percent RH (Non-Condensing); Differential Temperature 10 Deg F High Limit (Fixed), 10 to 25 Deg F Adjustable (Low Limit); Ambient Temperature 150 Deg F (Case)/265 Deg F (Sensing Element); Burner/Circulator Electrical Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor
