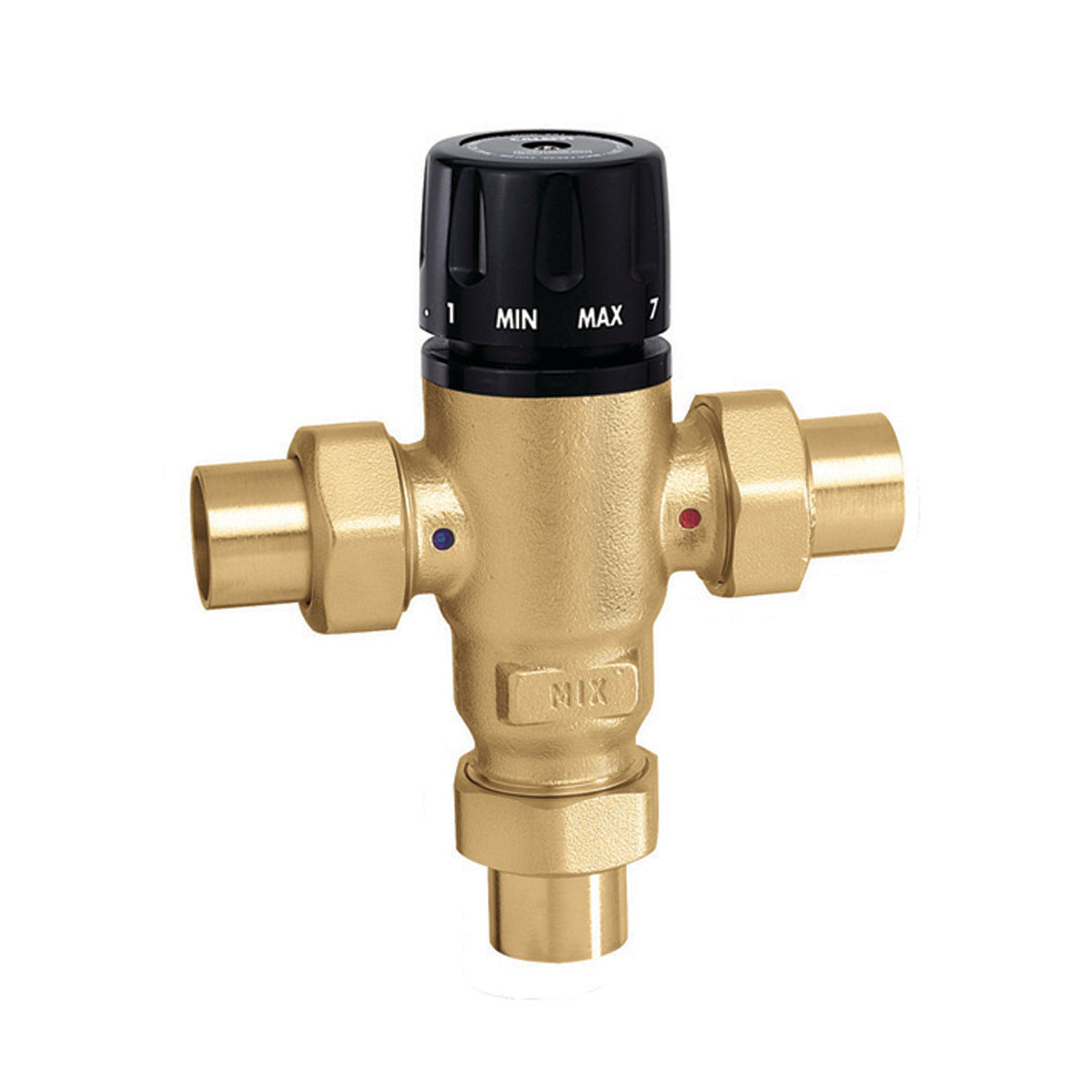

Caleffi 521609A Thermostatic and Pressure Balanced Mixing Valve

The Caleffi 521609A Thermostatic and Pressure Balanced Mixing Valve offers precise thermostatic control and stable pressure balance for domestic hot water, hydronic and radiant heating systems. This 3-Way, adjustable valve is a 1 inch nominal size with soldered x soldered x soldered end connections for reliable blending and safe, comfortable temperatures.

Constructed with a brass body and robust internals, it withstands up to 200 PSI and temperatures up to 200°F. The valve delivers a set temperature range of 85–150°F, a flow rate of 1 GPM, and a 3 CV flow capacity, with a maximum differential pressure of 20 PSI and a maximum inlet pressure ratio of 2:1 (H/C or C/H). A stainless steel spring, EPDM seal, and PPO shutter contribute to long-lasting performance.

It is lead-free and complies with ASSE 1017, CSA B125.3, NSF/ANSI 372, IPC, IRC, UPC, NPC, making it suitable for residential and commercial applications.

• Type: 3-Way thermostatic mixing valve
• Nominal size: 1 inch; end connections: soldered x soldered x soldered
• Set temperature range: 85–150°F; temperature rating: 200°F
• Flow: 1 GPM; CV: 3; max differential pressure: 20 PSI
• Materials: brass body; stainless steel spring; EPDM seal; PPO shutter; lead-free
• Applications: Domestic hot water, hydronic and radiant heating systems
• Dimensions (approx.): End-to-End 6-1/8", Base to Inlet 6-7/16", Inlet to Mixing Outlet 6-7/16"
