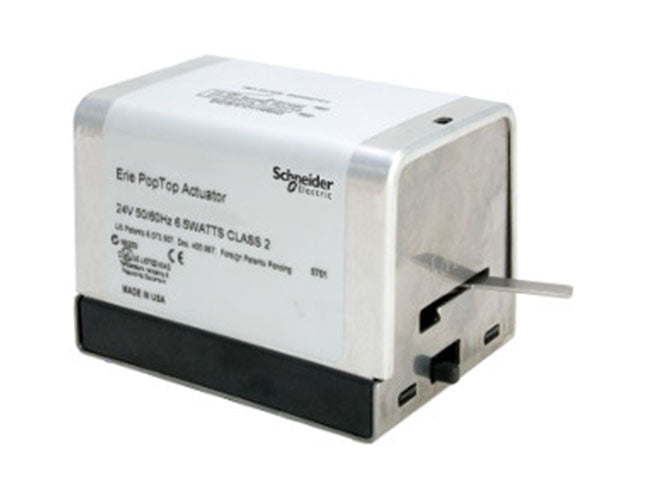

Erie Controls AG23A020 Valve Actuator

Erie Controls AG23A020 Valve Actuator is a robust ON/OFF electric actuator designed for general close-off applications. This 2-position, rotary actuator uses spring-return operation and runs on 24 V AC, making it a reliable choice for heating and cooling systems and zone valves. With a NEMA 1 enclosure and a compact 6.5-watt power rating, it delivers dependable performance in demanding environments. The unit features a 18-inch wire lead, supports 50/60 Hz frequency, and operates across a fluid temperature range from 32 to 200°F. Built for durability, the actuator combines a stainless steel base plate with an aluminum cover and carries approvals for CUL, CE, and C-Tick.

Key features include:

• ON/OFF, 2-position rotary operation with spring return
• 24 V AC supply, 50/60 Hz, 6.5 W
• NEMA 1 enclosure for general close-off protection
• Stainless steel base plate and aluminum cover for corrosion resistance
• Electrical position: NO; ideal for heating/cooling systems and zone valves
• Motor type: Hysteresis Synchronous
• Lead length: 18 inch wire lead
• Approvals: CUL, CE, C-Tick
