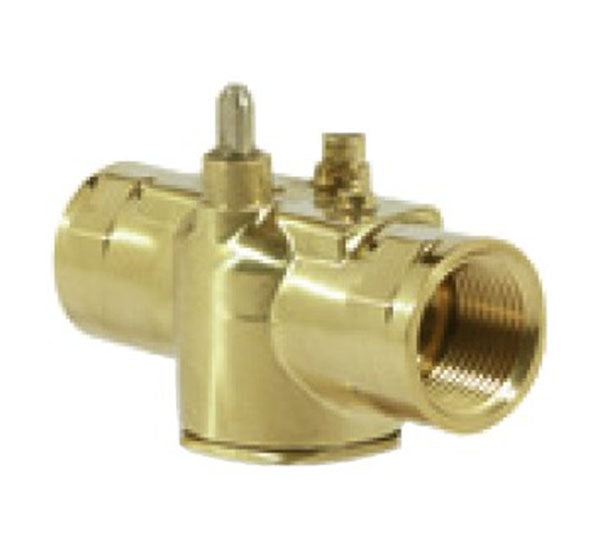

Erie Controls VS2327 Zone Valve Body Assembly

The VS2327 Zone Valve Body Assembly from Erie Controls delivers reliable, precise control for heating and cooling systems. This 2-way valve uses a 3/4 inch nominal size with threaded end connections and a spring-return actuator for fail-safe operation. It is normally closed to ensure secure shutoff during power loss, making it ideal for critical HVAC applications.

Designed for versatility, the VS2327 supports water, glycol, and low-pressure steam, with a broad 32–250°F fluid temperature range and close-off/static pressures of 40 psi and 300 psi, respectively (steam at 15 psi). The hub features a nickel-plated stem, brass seat, and Buna N paddle for long life and dependable operation. Ambient conditions handle up to 169°F and 5–95% non-condensing humidity.

• 2-Way valve with 3/4 inch nominal size and threaded end connections
• Spring-return actuator for fail-safe operation
• Normally closed valve position
• Media compatibility with water, glycol, and low-pressure steam
• High reliability due to hysteresis synchronous motor
• Manual override lever for immediate control
• Flow capacity of 7.5 Cv
