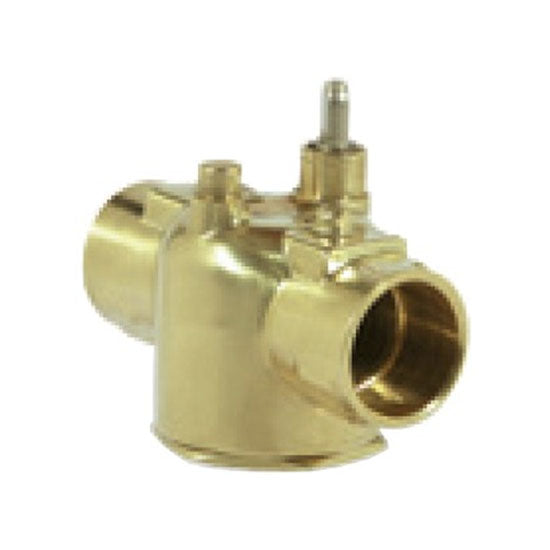

Erie Controls VT2211 Zone Valve Body

Erie Controls VT2211 Zone Valve Body is a rugged 2-way valve built for reliable HVAC control in heating and cooling systems. This 1/2 inch nominal size valve features soldered end connections and a 2-position, spring-return actuator, with a normally closed position for safe, fail-safe operation.

Constructed with a forged brass body, nickel-plated stem, brass seat, and Buna N paddle, it handles hot water, chilled water, and glycol across a broad temperature range. Valve timing offers quick response (25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring-return full-open to full-close), and the unit supports horizontal or vertical mounting in demanding environments.

• 2-Way valve for streamlined flow control
• Nominal size 1/2 inch with soldered x soldered ends
• 2-position, spring-return actuator for fail-safe operation
• Normally closed valve position
• Flow capacity Cv = 1
• Media Hot water, chilled water, glycol
• Pressure rating 60 psi close-off, 300 psi static
• Operating temperature 32–200°F fluid; ambient 104°F; humidity 5–95% non-condensing
• Motor and override Hysteresis synchronous motor for long life; manual override lever

Perfect for heating and cooling applications requiring precise, long-life valve control in HVAC systems.
