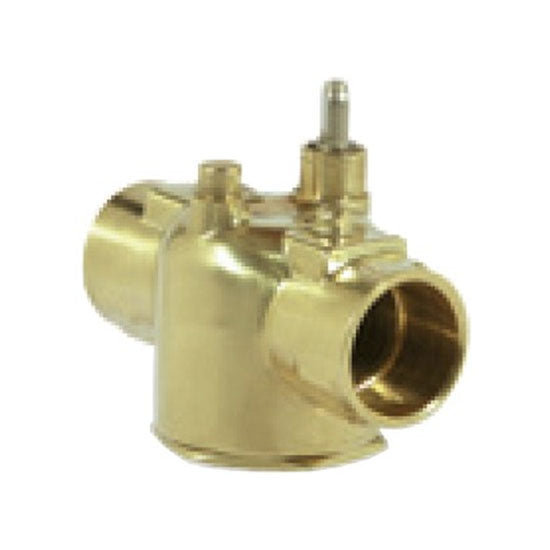

Erie Controls VT2212 Zone Valve Body

The VT2212 Zone Valve Body from Erie Controls is a reliable 2-way valve designed for precise heating and cooling control. With a 1/2 inch nominal size and soldered x soldered end connections, it uses a 2-position, spring-return actuator to deliver fail-safe, normally closed operation in every zone.

Forged brass body, nickel-plated stem, brass seat, and Buna N paddle stand up to hot and chilled water or glycol service. The valve tolerances handle 32 to 200°F fluids with 60 psi close-off and 300 psi static pressure. Typical timing is 25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring-return full travel, allowing versatile control across heating and cooling applications. Mounting is reversible for horizontal or vertical installation, simplifying retrofits.

• 2-Way zone valve with 1/2" nominal size; soldered x soldered ends
• 2-position, spring-return actuator for fail-safe operation
• Normally closed design with manual override lever
• Forged brass body with nickel-plated stem, brass seat, Buna N paddle
• Rated for hot/chilled water and glycol; 2.5 Cv flow; versatile in heating/cooling
• Wide operating range: 32–200°F fluids; 60 psi close-off, 300 psi static
• Horizontal or vertical mounting; long-life performance with hysteresis synchronous motor
