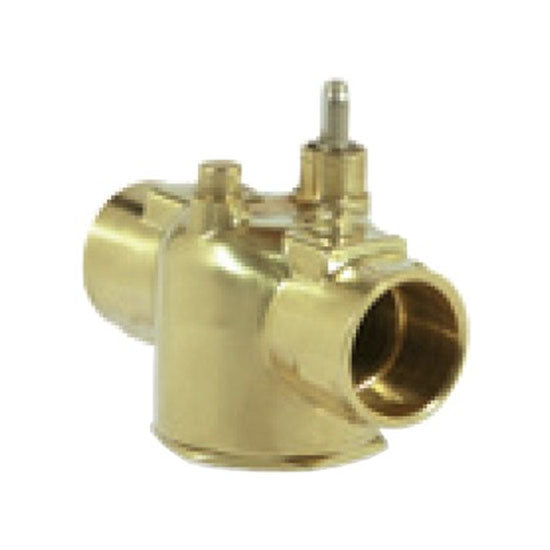

Erie Controls VT2213 Zone Valve Body

Erie Controls VT2213 Zone Valve Body is a reliable 2-way valve designed for heating and cooling applications. The VT2213 features a 1/2 inch nominal size with soldered x soldered end connections and a 2-position, spring-return actuator for dependable control.

Crafted with a forged brass body, it delivers durability under demanding HVAC conditions. The valve is normally closed, with a 25-second timing at 60 Hz (30 seconds at 50 Hz, 9 seconds for spring return from full open to full close). It supports horizontal or vertical mounting and handles hot or chilled water and glycol across a temperature range of 32 to 200°F with up to 60 psi close-off and 300 psi static pressure.

As part of its design, the VT2213 includes a hysteresis synchronous motor for long life, a manual override lever for maintenance, and a spring-return fail-safe operation.

• 2-Way, normally closed zone valve body
• Nominal size 1/2 inch; soldered x soldered connections
• 2-position, spring-return actuation
• Forged brass body; nickel-plated stem; brass seat; Buna N paddle
• Media: hot or chilled water and glycol
• Flow capacity: 3.5 Cv
• Mounting: horizontal or vertical
• Manual override lever for service

Ideal for reliable zone control in commercial and residential heating and cooling systems.
