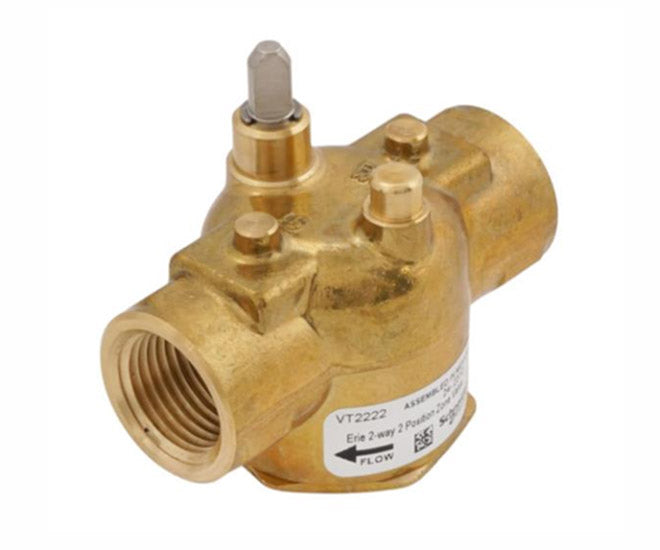

Erie Controls VT2222 Zone Valve Body

Erie Controls VT2222 Zone Valve Body is a robust 2-Way valve designed for heating and cooling applications. The 1/2" nominal size features threaded x threaded end connections and a 2-Position, spring-return actuator with a normally closed position for reliable fail-safe operation.

Built with a forged brass body, nickel-plated stem, brass seat, and Buna N paddle, this valve handles hot and chilled water as well as glycol across a wide temperature range (32–200°F). It tolerates system pressures up to 60 psi close-off and 300 psi static, with flexible mounting in horizontal or vertical orientations for easy installation.

Designed for long life and easy maintenance, the VT2222 includes a hysteresis synchronous motor, a spring-return operation for fail-safe actuation, and a manual override lever for commissioning and service tasks.

• Timing: 25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds with spring return (full open to full close)
• Flow: 2.5 Cv for reliable zone control
• Medium: Hot water, chilled water, and glycol
• Connections: Threaded x threaded end connections
• Mounting: Horizontal or vertical installation
• Conditions: Ambient up to 104°F; 5–95% non-condensing humidity
• Ratings: 60 psi close-off, 300 psi static

For efficient, precise HVAC zone control, the Erie Controls VT2222 Zone Valve Body combines durable construction with dependable performance in a compact package.
