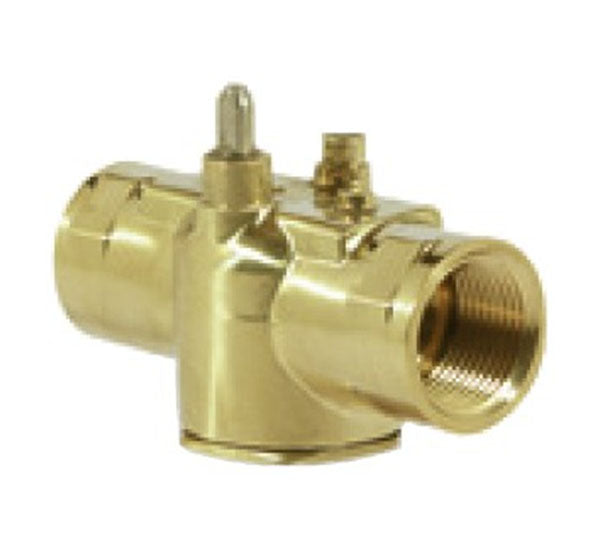

Erie Controls VT2322 Zone Valve Body

The VT2322 Zone Valve Body from Erie Controls delivers reliable, fail-safe control for heating and cooling systems. This 2-Way valve features a 3/4 inch nominal size with threaded end connections and a 2-Position, Spring Return actuator. The valve is normally closed and offers precise timing: 25 seconds from full open to full close at 60 Hz (30 seconds at 50 Hz; 9 seconds with spring return). Built for durability, it uses a forged brass body, nickel-plated stem, brass seat, and Buna N paddle to handle hot/chilled water and glycol across 32 to 200 Deg F, up to 300 psi static (40 psi close-off). Horizontal or vertical mounting accommodates your layout, while a manual override lever adds quick on-site control. Hysteresis synchronous motor design provides long life, and the spring return ensures fail-safe operation for heating or cooling applications. Ideal for commercial or residential HVAC projects that demand dependable, precise flow control.

• Type: 2-Way
• Nominal Size: 3/4 inch
• End Connections: Threaded x Threaded
• Actuation: 2-Position, Spring Return
• Valve Position: Normally Closed
• Body Material: Forged Brass
• Flow Capacity: 2.5 Cv
• Temperature Range: 32 to 200 Deg F
• Pressure Rating: 40 psi close-off; 300 psi static
• Media: Hot/Chilled Water, Glycol
• Mounting: Horizontal or Vertical
• Manual Override Lever
