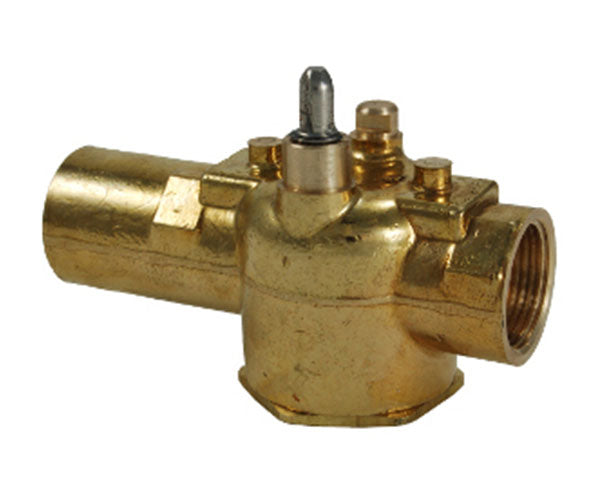

Erie Controls VT2343 Zone Valve Body

Erie Controls VT2343 Zone Valve Body is a robust 2-way valve designed for heating and cooling applications. The 3/4 inch valve features inverted flare end connections and a 2-position, spring-return actuator, providing a reliable normally closed operation for fail-safe control. Crafted with a forged brass body, this valve is built for longevity and versatile installation with horizontal or vertical mounting.

Key performance includes precise timing: 25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds with spring return from full open to full close. It handles hot or chilled water and glycol across a broad temperature range (32 to 200 degrees F) and withstands up to 60 psi close-off and 300 psi static pressure. The VT2343 is engineered for HVAC systems to deliver dependable flow with a capacity of 3.5 Cv.

Designed for reliability, it uses a nickel-plated stem, brass seat, and Buna-N paddle, with a hysteresis synchronous motor for long life and a manual override lever for quick service. Ambient conditions: up to 104 F and 5–95% non-condensing humidity.

• Type: 2-Way, normally closed
• End connections: inverted flare x inverted flare
• Actuation: 2-position, spring return
• Flow capacity: 3.5 Cv
• Media: hot/chilled water, glycol
• Body: forged brass; stem nickel-plated; Buna-N paddle
• Mounting: horizontal or vertical
• Fail-safe operation with manual override
