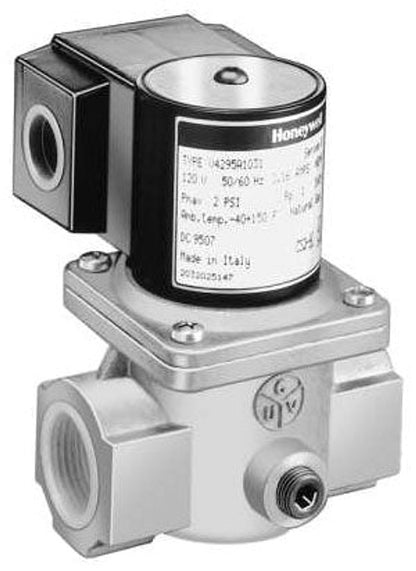

Honeywell Thermal Solutions FSG V4295A1031 Solenoid Gas Valve

Meet the FSG V4295A1031 Solenoid Gas Valve from Honeywell Thermal Solutions—a rugged, 1-inch port valve designed for safe, dependable control in furnaces, ovens, and boilers. This NC, straight-through gas valve opens in about 1 second, delivering rapid, precise gas shutoff and reliable operation in commercial and industrial settings.

Built with a die-cast aluminum body, the valve handles air, natural or manufactured gas, propane, and mixed gas media. It operates at 120 VAC (50/60 Hz) with a 0.16 A draw and is rated for -40 to 140 F and up to 2 PSI. Mounts vertically up to 90 degrees and includes a 1/4" pressure tap for monitoring. The unit complies with UL, CSA, and FM standards for added safety and compatibility.

• Port connections: 1-inch threaded inlet and outlet
• Flow capacity: 790 CFH
• Valve timing: 1 second to open/close
• Inclusions: 1/4-inch pressure tap
• Applications: furnace, oven, atmospheric burner, rooftop makeup air unit, commercial boiler
• Dimensions: 3-15/16" W x 3" D x 5-1/4" H
