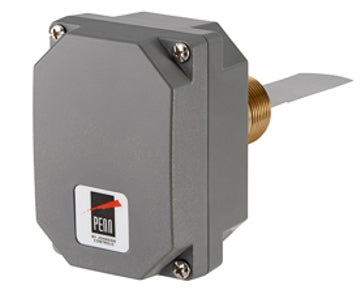

Johnson Controls F261KAH-V01C Fluid Flow Switch

The Fluid Flow Switch from Johnson Controls F261KAH-V01C delivers reliable paddle-type flow monitoring for 1-inch lines. This rugged switch uses a threaded end connection and SPDT contacts, all housed in a NEMA 3R enclosure for dependable operation in challenging environments.

Designed for a temperature range of -20 to 250 F and a pressure rating up to 290 PSI, it includes a stainless steel paddle, lock-tooth washer, and stainless steel paddle screw for secure installation. The device features UL, CE, FCC, and RCM compliance and an impulse voltage rating of 4000 V AC. Ambient operating temperature spans -40 to 140 F for versatile use.

• 1-inch nominal size paddle-type flow switch
• Threaded end connection for quick, secure mounting
• SPDT contacts in a rugged NEMA 3R enclosure
• Stainless steel paddle (1-6 in) with lock-tooth washer and screw
• 4000 V impulse rating with color-coded terminals and ground
• UL, CE, FCC, and RCM certified for global use
• Temperature range -20 to 250 F; ambient -40 to 140 F
• Pressure rating 290 PSI
• 100,000-cycle life for long-term reliability
