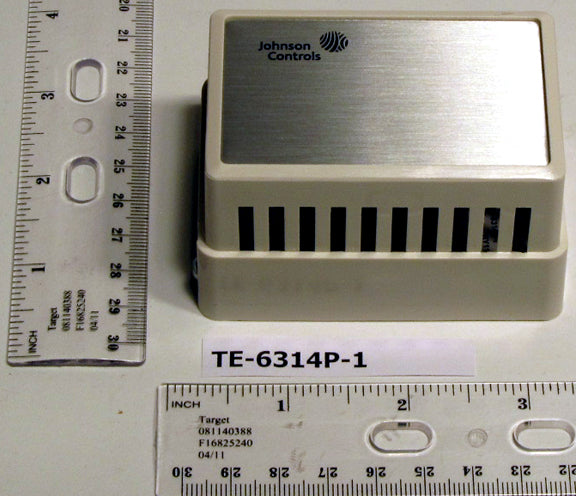

Johnson Controls TE-6314P-1 Temperature Sensor

Johnson Controls TE-6314P-1 Temperature Sensor delivers precise room-temperature readings for spaces, walls, and electrical boxes. This sensor covers a measurement range from -50 to 220 Deg F and an accuracy of +/- 0.34 Deg F at 70 Deg F, providing reliable performance where compact sensing is needed.

Its wetted element is nickel and the enclosure is UL 1955 approved plastic, offering durability in various environments while remaining lightweight at about 0.2 lb. The unit is designed for wall-mount installation and fits in tight spaces with a compact footprint of 3.12 W x 1.8 D x 2.09 H. It is well-suited for room/space temperature, plenum, and electrical box applications.

Electrical connection uses 22 AWG wire with a 0.6 mm diameter and 6 in length. Sensor type is 1 Kilo Ohm Nickel Wire with a temperature coefficient of 3 Ohm/Deg F.

• Wide operating range: -50 to 220 Deg F
• High accuracy: +/- 0.34 Deg F at 70 Deg F
• Sensor element: 1 Kilo Ohm Nickel Wire with 3 Ohm/Deg F coefficient
• UL 1955 approved plastic enclosure
• Compact wall-mount size: 3.12 W x 1.8 D x 2.09 H
• Electrical connection: 22 AWG, 0.6 mm diameter x 6 in length
