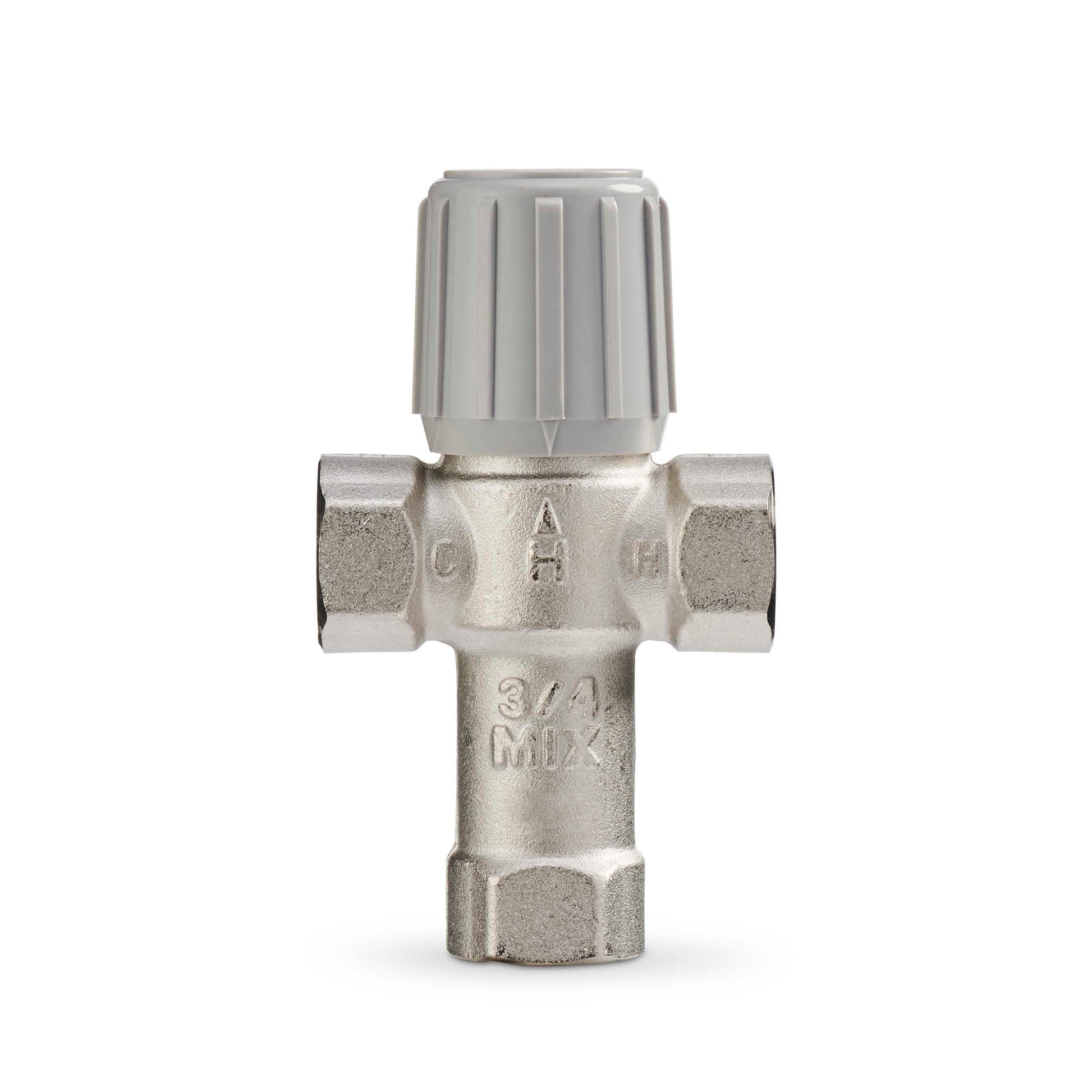

Resideo - Honeywell Home AM101-1LF Thermostatic Mixing Valve

Thermostatic Mixing Valve delivers safe, precise water temperature control with anti-scald protection—the AM101-1LF from Resideo/Honeywell Home. This 3/4-inch valve uses threaded end connections, a compact 3-inch end-to-end distance, and a 2.7-inch inlet-to-mixing-outlet spacing. The non-stick coated nickel-plated brass body resists corrosion and provides reliable performance in domestic water lines, radiant floor heating, solar hot water, and other systems.

Designed for a wide range of applications, including domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, solar hot water, greenhouse, and combo systems, this valve combines safety, versatility, and efficiency. It is lead-free and compliant with ASSE 1017, CSA, and IAPMO standards. Key specs include a 0.5 GPM flow rate (3.8 Cv), a temperature rating up to 212°F, and a maximum pressure of 150 PSI; operating temperature range 70–145°F ensures comfort and control across applications.

• Anti-Scald and Anti-Chill Protection
• Proportional Valve for precise temperature control
• Dual Purpose Mixing or Diverting Valve
• Tamper-Resistant Design
• Straight-Through Design for minimal pressure drop
• Lead-Free construction; ASSE 1017, CSA, IAPMO compliant
