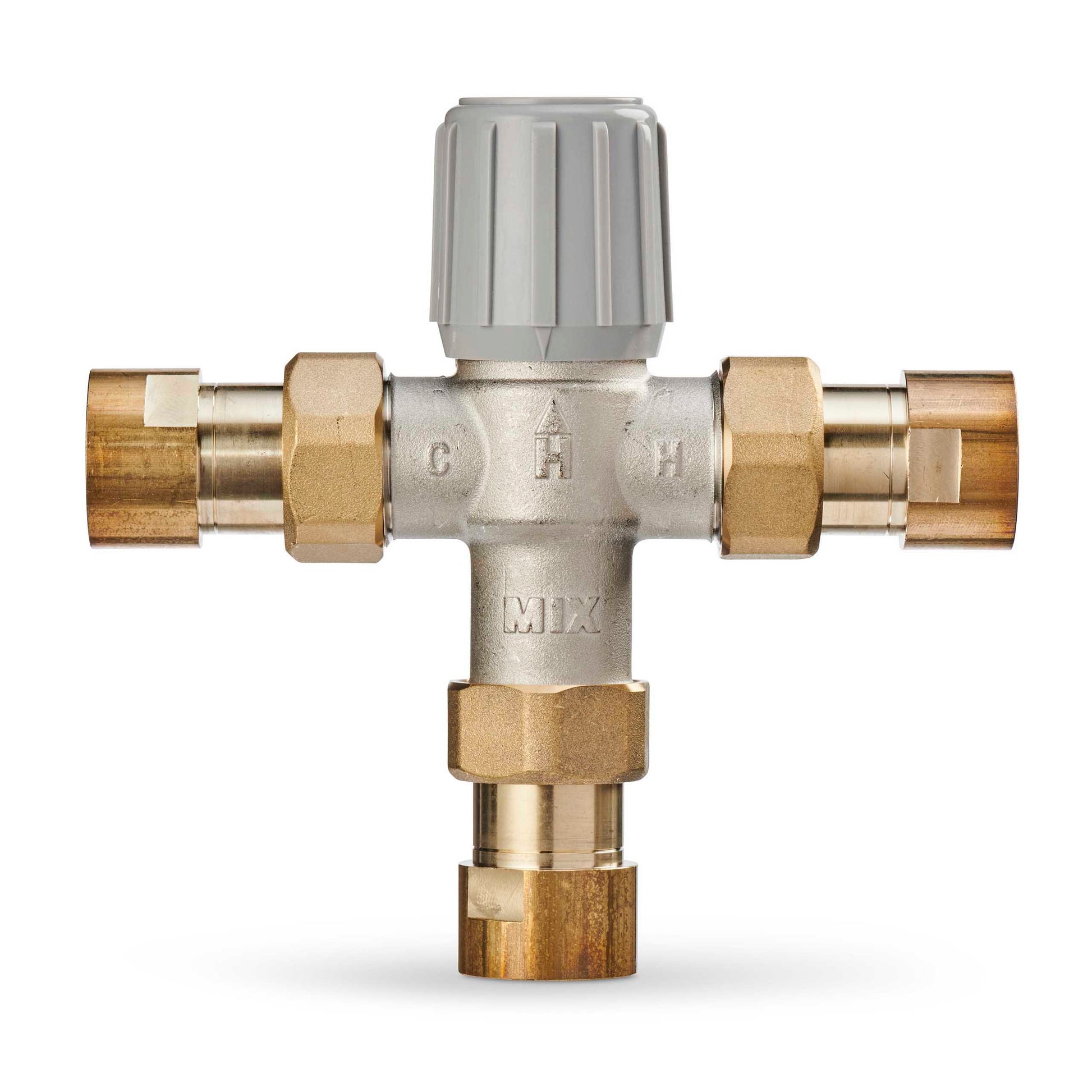

Resideo - Honeywell Home AM101-UT-1LF Thermostatic Mixing Valve

Thermostatic Mixing Valve AM101-UT-1LF by Resideo Honeywell Home delivers precise temperature control for safe domestic water use. This Thermostatic Mixing Valve provides anti-scald protection with a proportional valve design, maintaining stable outlet temperatures even as supply conditions change. Built for demanding environments, it supports domestic water, radiant floor heating, space heating, solar hot water, and other multi-system applications.

Key specifications include a 3/4 inch nominal size with union threaded x union threaded x union threaded end connections, a 6.5 inch end-to-end distance, and 3.8 inch base-to-inlet and inlet-to-mixing-outlet dimensions. The body is a non-stick coated nickel-plated brass construction rated up to 212°F and 150 PSI, with a 0.5 GPM flow and 3.9 Cv. Operating temperature ranges from 70 to 145°F, and O-rings are EPDM for reliable sealing. This valve also features a tamper-resistant design and a straight-through flow path for minimal pressure loss, making it easy to install in combi systems or retrofit projects.

• Anti-Scald protection
• Proportional valve for accurate temperature control
• Dual-purpose mixing or diverting valve
• Tamper-resistant design
• Straight-through flow path
• Lead-free construction
• Standards: ASSE 1017, CSA, IAPMO
• 3/4 in union connections
