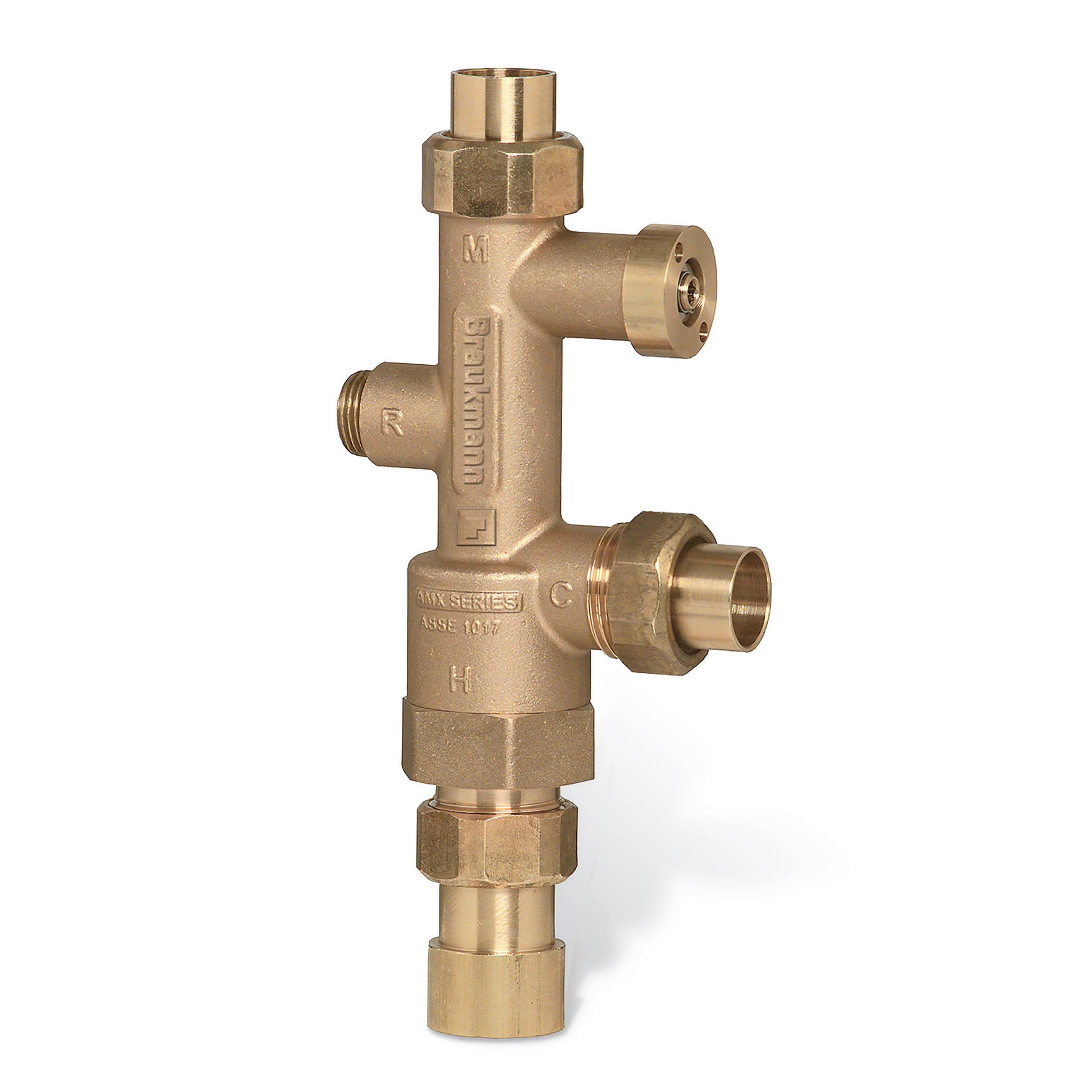

Resideo - Honeywell Home AMX102-US-1LF Thermostatic Mixing Valve

Thermostatic Mixing Valve technology ensures safe, consistent water temperature in domestic systems. The AMX102-US-1LF from Resideo-Honeywell Home delivers precise proportional control with a 0.5 GPM flow rate and a 200°F temperature rating for versatile plumbing applications.

Designed for a wide range of settings, including domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, solar hot water, greenhouse, and industrial applications, this 1 inch nominal valve features end connections as union soldered x union soldered x female threaded and measures 10 inches end-to-end with 4-1/2 inches base-to-inlet and 4-1/2 inches inlet-to-mixing-outlet spacing. The sturdy non-stick coated brass/stainless steel body is lead-free and rated for up to 150 PSI with an operating temperature range of 90–130°F.

• 1" nominal size with union soldered x union soldered x female threaded ends
• Flow 0.5 GPM; Cv 4
• Temperature rating 200°F; Operating range 90–130°F
• Pressure rating 150 PSI
• Includes 3/16 Allen wrench; integral check valve
• Proportional valve with dual-purpose mixing or diverting function; union tailpiece connection
• Standards ASSE 1017, CSA, UPC, IAPMO; Lead-free
• Applications domestic water, radiant floor heating, solar hot water, nursing homes, public facilities
