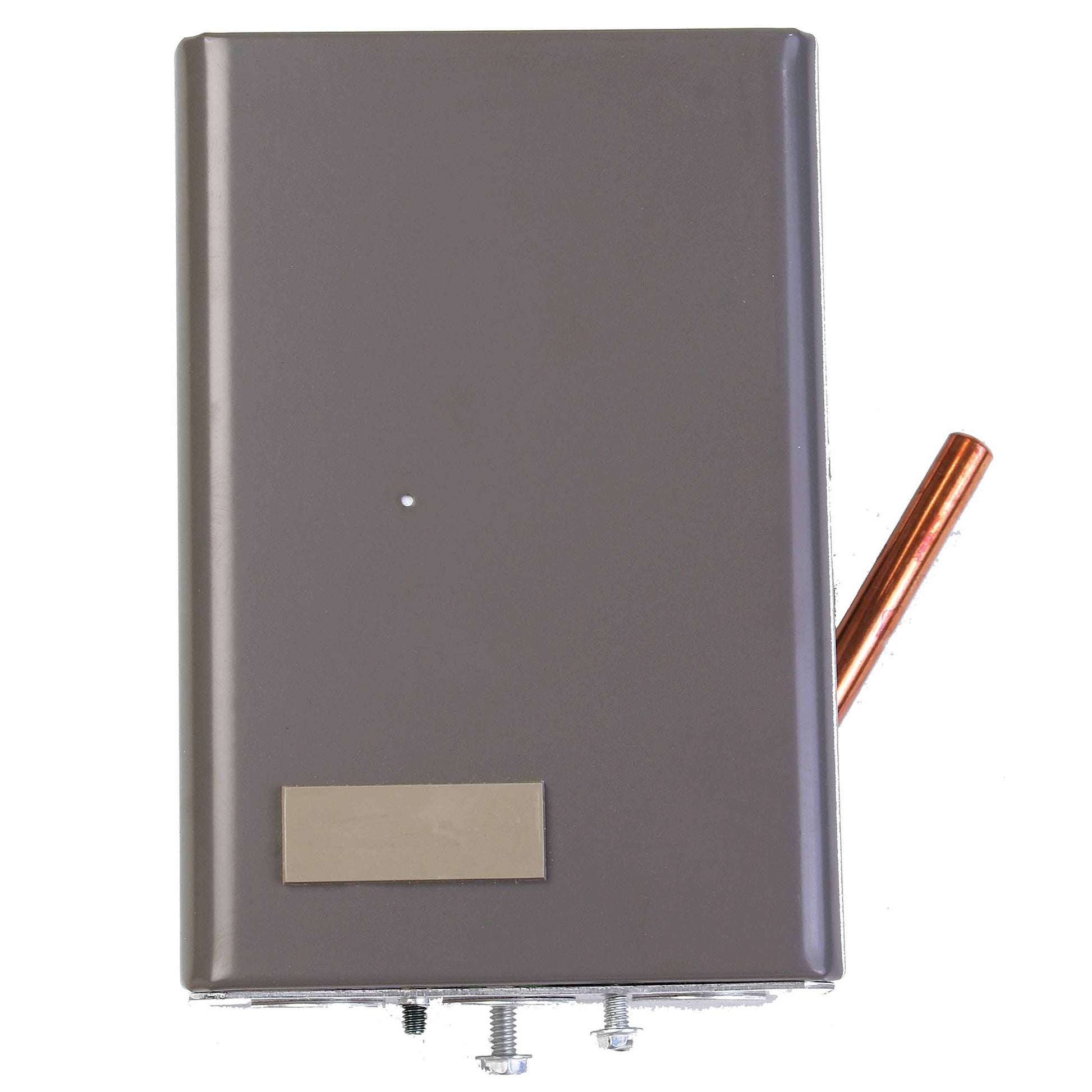

Resideo - Honeywell Home L8148E1265 Aquastat Relay

The L8148E1265 Aquastat Relay from Resideo/Honeywell Home delivers reliable high-limit protection and precise immersion sensing for boilers and burners. This L8148E1265 Aquastat Relay uses a 4-1/2 inch capillary with vertical well immersion to provide accurate temperature control, rugged construction, and easy installation in demanding HVAC environments.

• Type and immersion: 4-1/2 inch capillary with high-limit, vertical well immersion
• Temperature range: 140°F to 240°F (high-limit); Maximum temperature rating 150°F at 1.2A @ 24V and 77°F at 1.4A @ 24V (load)
• Contact configuration and ratings: SPST; full-load 7.4A @120V AC / 3.7A @240V AC;
  locked rotor 44.4A @120V AC / 22.2A @240V AC (burner/circulator); 0.8A @24V AC; 0.25A @1/4–12V DC; 0.2A anticipator
• Connection: 1/2 inch conduit; quick-connect or screw terminals
• Applications and approvals: Circulator motor, burner; UL and CSA approved
• Dimensions and specs: 4-5/16" W × 3-1/8" D × 6-1/8" H; differential 15°F; max 255 PSI; humidity 0–95% RH non-condensing; insulation depth 1-1/2"–3"
• Includes: 50 Volt Amp transformer, Molex plug, heat-conductive compound

UL/CSA-listed and designed for dependable burner and circulator performance, this aquastat relays precise control with durable construction and straightforward installation for your heating system.
