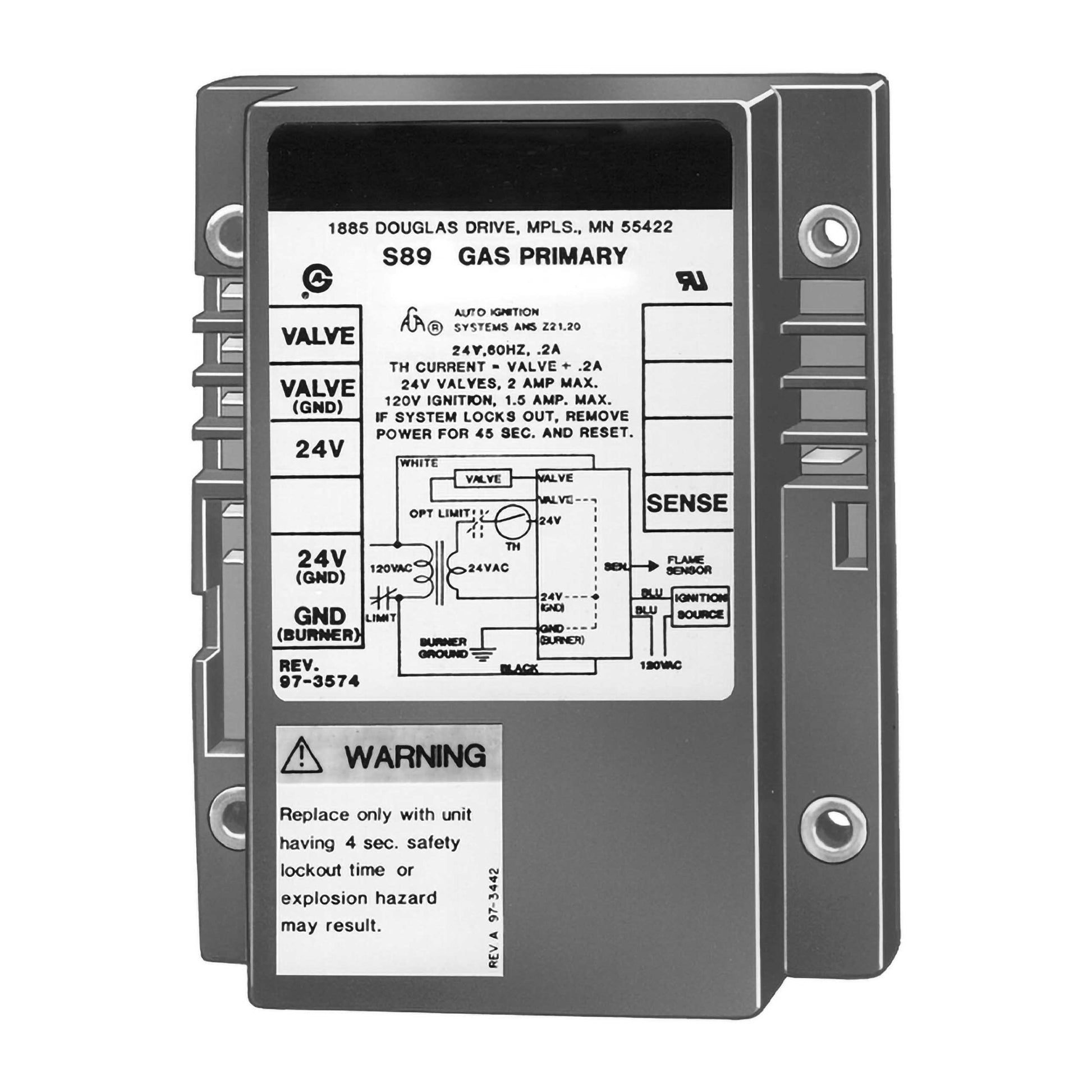

Resideo - Honeywell Home S89F1098 Ignition Control Module

Introducing the Ignition Control Module from Resideo/Honeywell Home—the direct spark, electronic ignition solution for gas-fired furnaces, boilers, and heating appliances. Optimized for natural gas or liquid propane, this module uses an external high voltage spark generator and a two-rod flame sense to ensure reliable ignition and safe operation. Model S89F1098 is designed for CSA-approved installations and straightforward replacement in existing systems.

• Fuel compatibility: Natural gas or liquid propane gas.
• Ignition system: Direct spark ignition with an external high voltage spark generator.
• Flame sensing: Two-rod flame sense for precise flame detection.
• Timing and control: 1-trial ignition sequence with a 4-second ignition trial and 30-second prepurge.
• Safety and relight: Flame failure response in 2 seconds at 2.5 microamps; fast re-ignition in 0.8 seconds.
• Electrical specs: Valve rating 2 A at 24V AC; power rating 24V AC, 60 Hz.
• Physical and operating range: Size 4-1/16 Inch Width x 1-15/16 Inch Length x 5-1/4 Inch Height; temperature range -40 to 175°F.
• Applications and certification: For gas-fired furnaces, boilers, conversion burners, heating appliances; CSA approved.

This ignition control module provides reliable performance in harsh environments with a wide operating temperature range and standard 24V AC power, making it a dependable upgrade for many gas-fired systems.
