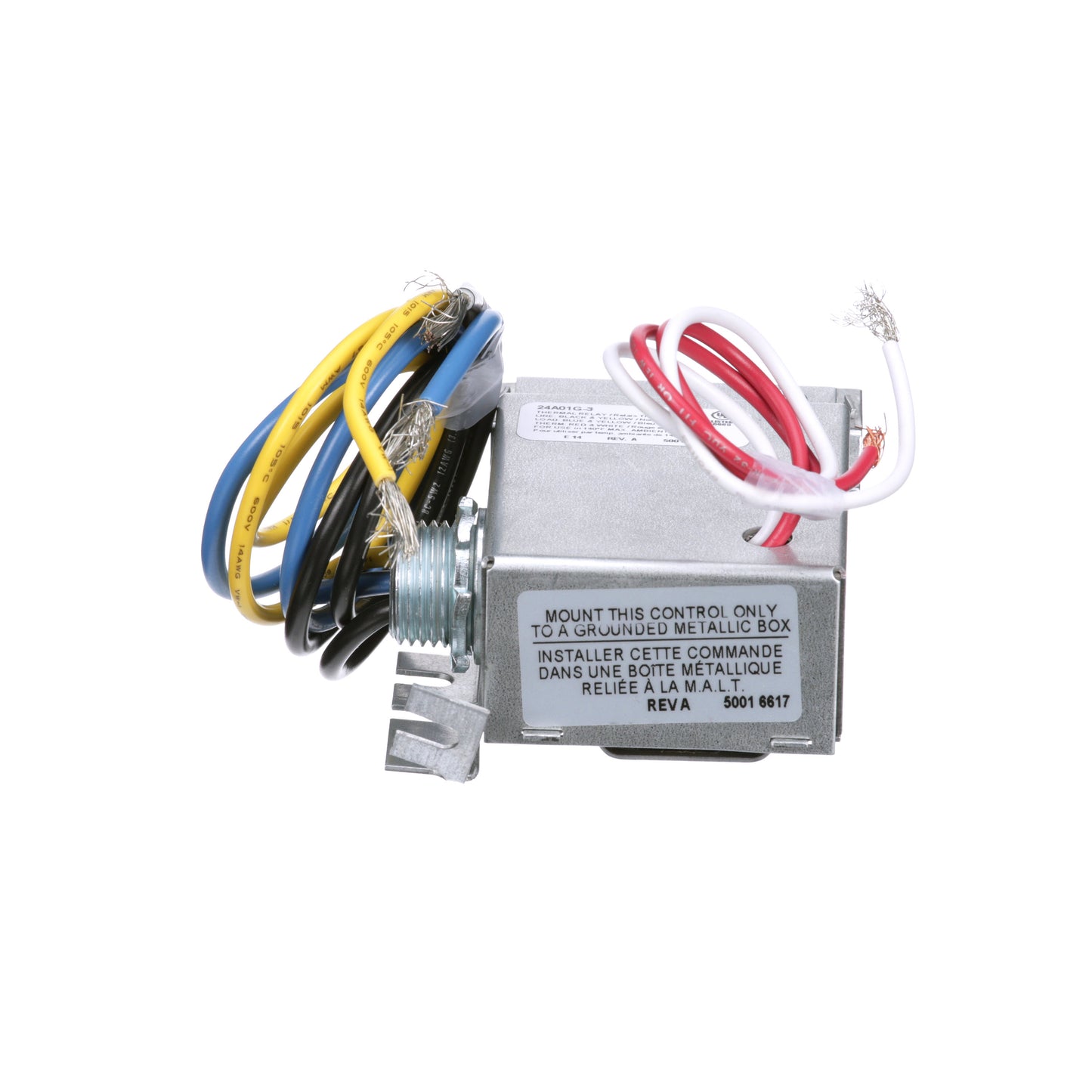

White-Rodgers 24A01G-3 Baseboard Heater Low Voltage Control System

Introducing the White-Rodgers 24A01G-3 Baseboard Heater Low Voltage Control System, a compact, efficient thermostat solution for 240V baseboard heating. This SPST, normally open control provides reliable, single-level temperature management with silent operation for comfortable room warmth. Its compact size fits standard panels for easy retrofit.

Designed for baseboard heater installations, it handles up to 6000 watts resistive at 240 volts (25 A) and supports a motor rating of 12 A full-load and 72 A locked rotor. The thermostat current is 0.2 A, ensuring low control input, while the ambient operating range is -20 to 140 degrees Fahrenheit. With an 18-inch lead for flexible wiring, this model meets UL and CSA standards for safe, code-compliant installation, ensuring long-term reliability in residential and light commercial environments.

• SPST Normally Open switch for straightforward thermostat control.
• Single-level temperature control with silent operation.
• Handles up to 6000 W resistive at 240 V; 25 A capacity.
• UL and CSA listed for safe, code-compliant installation.
• 18-inch lead length for flexible wiring and easy mounting.
