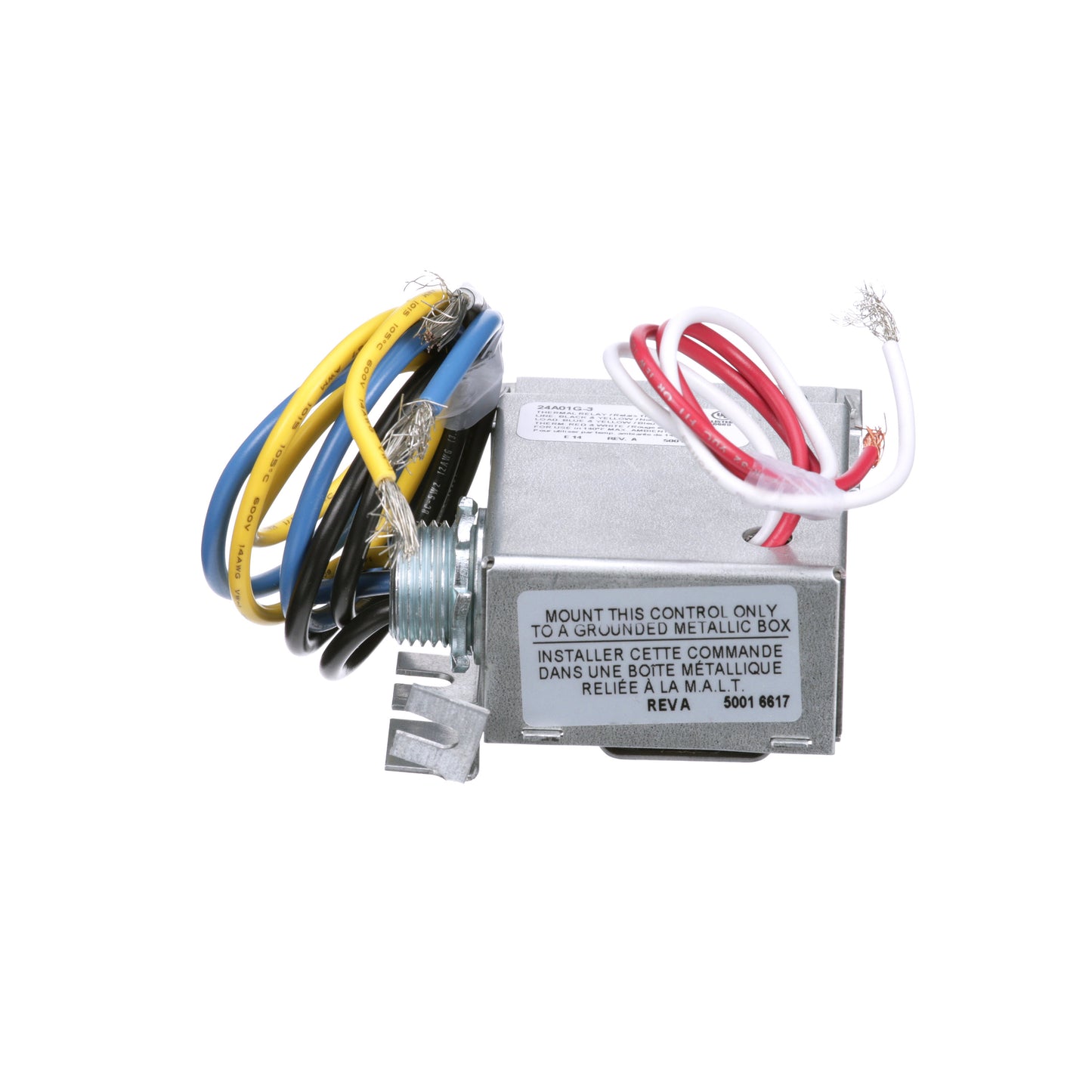

White-Rodgers 24A05E-1 Baseboard Heater Low Voltage Control System

White-Rodgers 24A05E-1 Baseboard Heater Low Voltage Control System is a compact, low-voltage thermostat designed for baseboard heaters. It offers SPST, Normally Open, single level temperature control with silent operation for reliable comfort.

Rated for 208V AC at 60 Hz, this control system handles up to 5200 watt resistive loads (22 A) and features a thermostat current of 0.2 A. The 18-inch lead length supports easy wiring, and the ambient temperature range of -20 to 140 Deg F ensures robust performance in various environments. The average time delay is 45 seconds to prevent short cycling. UL and CSA standards ensure safety and compatibility with standard baseboard heater installations.

• SPST Normally Open design provides straightforward on/off control.
• Low voltage thermostat suitable for baseboard heaters and quiet operation.
• 208V AC, 60 Hz compatibility for standard heating systems.
• 18-inch lead length simplifies wiring and installation.
• High current rating: 5200 W resistive at 208V (22 A) with safe operating range.
• UL and CSA approved for safety and reliability.
• Average 45-second time delay reduces short cycling.
