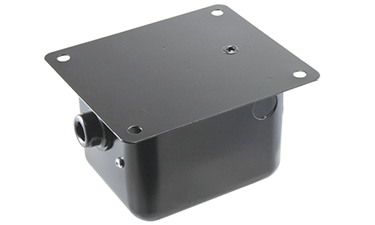

Allanson Transformers 1092-H Gas Transformer

The Allanson 1092-H Gas Transformer delivers reliable power conversion for gas furnace control systems. This Allanson gas transformer features a primary voltage of 250/180 VAC and a high secondary of 6000 VAC, making it an ideal gas furnace transformer for residential, industrial, and commercial applications.

Designed for gas furnace installations where consistent voltage is critical, the 1092-H uses a ferromagnetic core for efficient energy transfer. It includes a Rajah connector, an internal junction box, and a single-pole design with a 120 VAC rating for control circuits.

• Primary/Secondary Voltage: 250/180 VAC primary; 6000 VAC secondary; Frequency: 50/60 Hz
• Construction: Ferromagnetic core; Type: Single-pole; Junction: Internal; Connector: Rajah
• Voltage Rating: 120 VAC; Loading Air Gap: 1/16" to 1/8"
• Operating Range: -30 to 40°C; Storage Range: -40 to 80°C; Humidity: up to 90% RH
• Applications: Residential, Industrial, Commercial Gas Furnaces

Built to endure demanding environments, the Allanson 1092-H provides a durable, reliable solution for HVAC and furnace systems, ensuring steady operation across a variety of installation scenarios.
