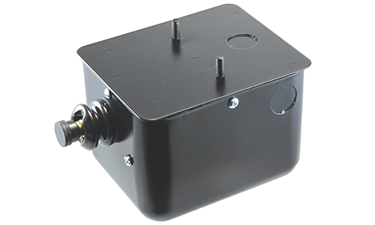

Allanson Transformers 1092-PFG Gas Transformer

Gas Transformer: The Allanson 1092-PFG Gas Transformer delivers reliable gas furnace control with a rugged, ferromagnetic core. Designed for residential, commercial, and industrial settings, this transformer ensures dependable ignition and control with trusted Allanson quality.

Key specifications include a primary voltage of 250/180 VAC and a 6000 VAC secondary, a 50/60 Hz frequency, and a 1/4-Inch-20 mounting stud with thumb screw terminals. The unit features one-end grounding and an internal junction box for neat wiring. It is rated for a 120 VAC control voltage and supports high humidity environments.

• Primary voltage: 250/180 VAC
• Secondary voltage: 6000 VAC
• Frequency: 50/60 Hz
• Terminal type: Thumb Screw
• Mounting: 1/4"‑20 TPI x 1" stud
• Grounding: One End Ground
• Junction box: Internal
• Number of poles: 1
• Control voltage: 120 VAC
• Temperature range: Storage -40 to 80 °C; Operating -30 to 40 °F
• Humidity: 90% RH
• Applications: Residential, Industrial, Commercial Gas Furnace
