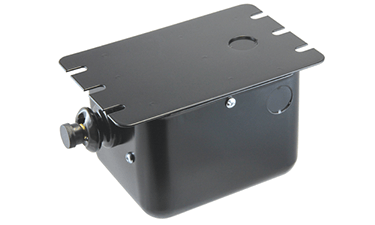

Allanson Transformers 1092-S Gas Transformer

Gas Transformer performance and reliability meet demanding furnace applications with the Allanson 1092-S Gas Transformer. This high-grade transformer delivers a 6000 V AC secondary and a rugged 250/180 V AC primary, optimized for residential, industrial, and commercial gas furnaces.

Built with ferromagnetic core construction and thumb-screw terminals, it provides dependable operation across 50/60 Hz environments and is designed for an internal junction box installation.

Designed to handle extreme conditions, it tolerates -40 to 80 C in storage and -30 to 40 C in operation, with up to 90% relative humidity. This transformer is ideal for usage across gas heating systems and related equipment.

• Primary Voltage: 250/180 V AC
• Secondary Voltage: 6000 V AC
• Frequency: 50/60 Hz
• Terminal Type: Thumb Screw
• Junction Box: Internal
• Pole: 1
• Voltage Rating: 120 V AC
• Loading Air Gap: 1/16 to 1/8 Inch
• Temperature Range: Storage -40 to 80 C; Operating -30 to 40 C
• Operating RH: 90%
• Applications: Residential, Industrial, Commercial Gas Furnace
