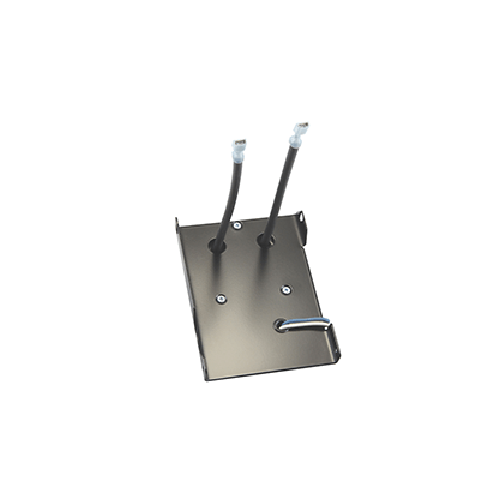

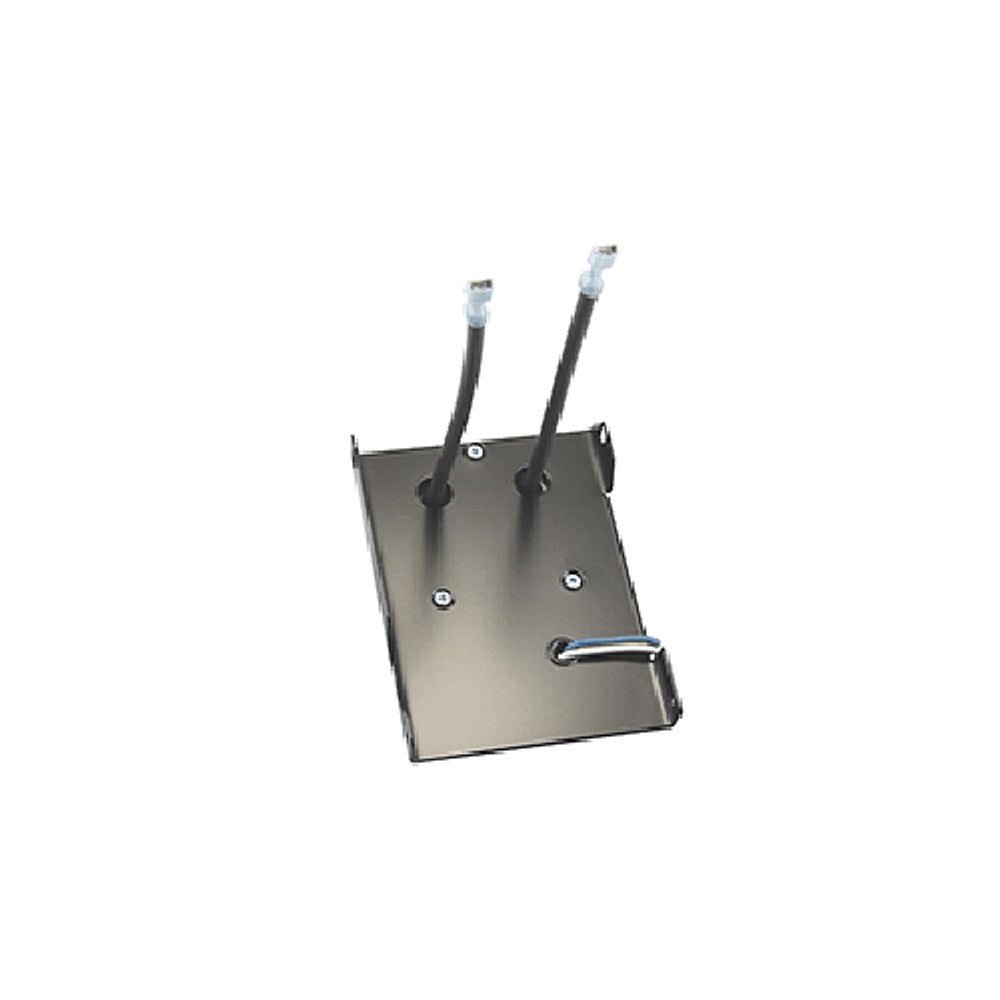

Allanson Transformers 2275-658 HVAC Oil Igniter

Allanson 2275-658 HVAC Oil Igniter is a reliable ignition transformer for oil-fired heating and cooling systems. This HVAC oil igniter uses a high-voltage secondary of 17.5 kV sourced from a 120 V AC input to ensure fast, reliable ignition in heating and air conditioning equipment. Built as an oil burner igniter, it combines proven performance with easy installation for HVAC professionals.

Designed for rugged operation, this unit features a high voltage cable with a 1/4 inch push-on terminal and includes side bracket mounting for versatile installation in compact equipment bays.

• Input/primary voltage: 120 V AC at 50/60 Hz; Primary: 87 V
• Secondary voltage: 17.5 kV
• Power rating: 86.5 VA
• Secondary short-circuit current: 45 mA
• Loading air gap: 1/16 to 3/16 inch
• Operating temperature: -30 to 40 C; Storage temperature: -40 to 80 C
• Relative humidity: up to 90%
• Mounting: Side bracket mounting included
• Cable/connectivity: High voltage cable with 1/4 inch push-on terminal
