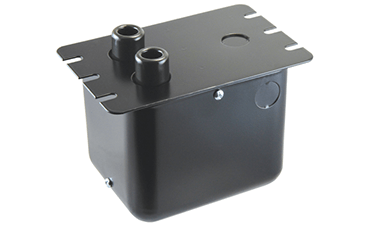

Allanson Transformers 2714-662 Gas Transformer

The Allanson Transformers 2714-662 Gas Transformer delivers reliable high-voltage conversion from 275 VAC primary to 12,000 VAC secondary, designed for gas furnace systems and other critical loads. This two-pole, mid-point grounded ferromagnetic transformer uses a Rajah connector and an internal junction box to simplify installation and enhance safety. Optimized for residential, commercial, and industrial applications, it operates at 60 Hz with a precise loading air gap of 1/8 to 3/16 inch, ensuring stable performance under varying loads. The unit is built to endure demanding environments, with operating temperatures from -30 to 40 C and storage ranges from -40 to 80 C, and up to 90% relative humidity.

• Primary voltage: 275 VAC
• Secondary voltage: 12,000 VAC
• Frequency: 60 Hz
• Type: Gas transformer with ferromagnetic core
• Grounding: Mid-point grounded
• Connection: Rajah connector and internal junction box
• Poles: 2
• Loading air gap: 1/8" to 3/16"
• Temperature range: Operating -30 to 40 C; Storage -40 to 80 C
• Humidity: Up to 90% RH
• Applications: Residential, Commercial, Industrial Gas Furnaces
