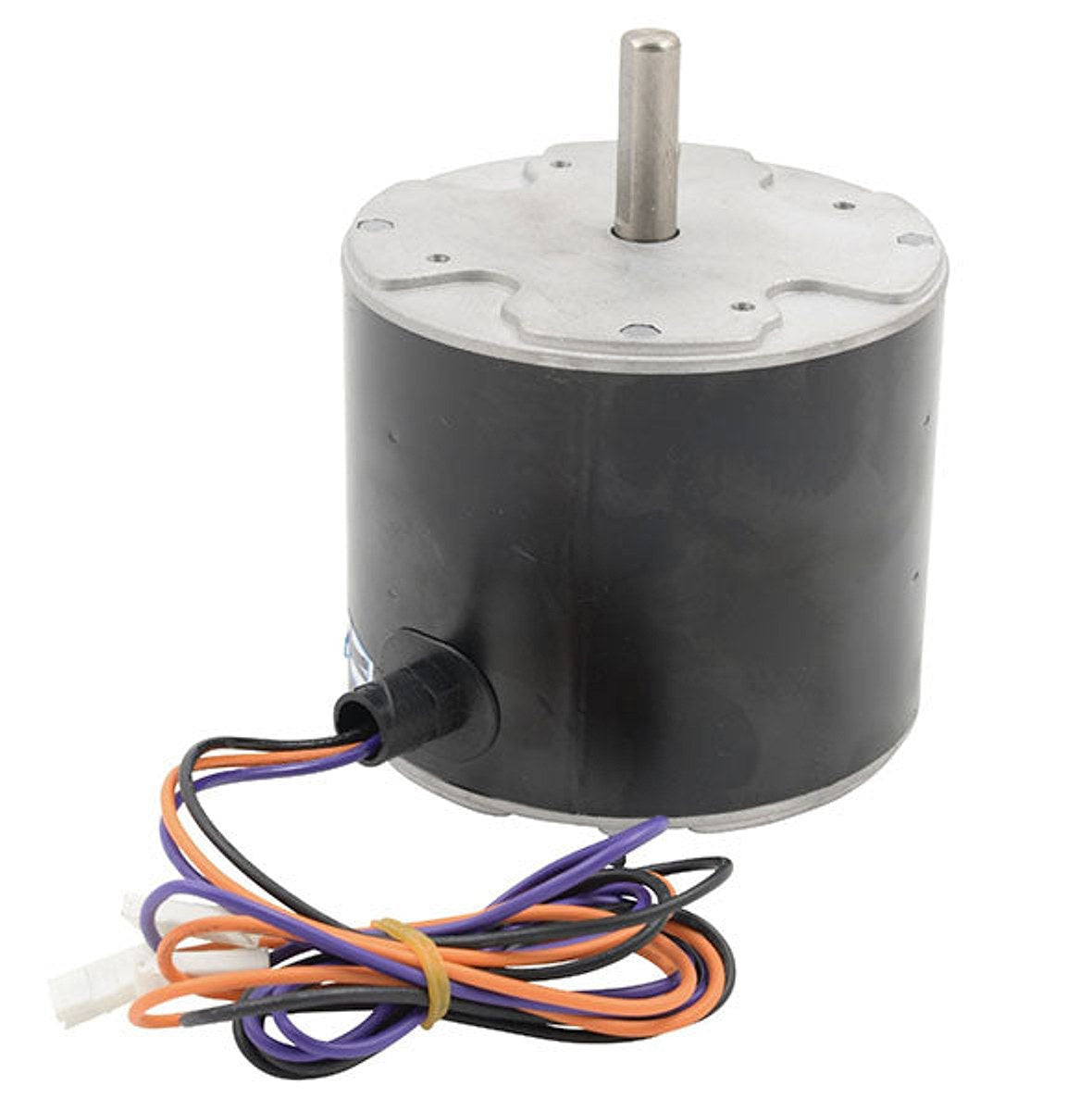

Armstrong 12F49 Condenser Fan Motor

Armstrong 12F49 Condenser Fan Motor delivers reliable condenser cooling for HVAC systems. This 1/10 HP PSC motor operates on 208-230V AC, 60 Hz, delivering steady performance in environments requiring efficient, compact fan motors.

With a rated speed of 1075 RPM, a NEMA 42 frame, and ball bearings, it provides long life and smooth operation for condenser fans. The motor features Insulation Class B, a 4.84" diameter and 5.82" height footprint, and CCW rotation from the lead end, making it a drop-in upgrade for compatible units. Weighing about 8 pounds, it’s built for dependable performance in demanding applications.

• Power and size: 1/10 HP PSC motor, NEMA 42 frame, 4.84" dia x 5.82" H
• Electrical: 208-230V AC, 60 Hz, 0.7 A FLA
• Rotation and bearings: CCW rotation, ball bearings, 1075 RPM
• Durability: Insulation Class B, weight 8 lb
