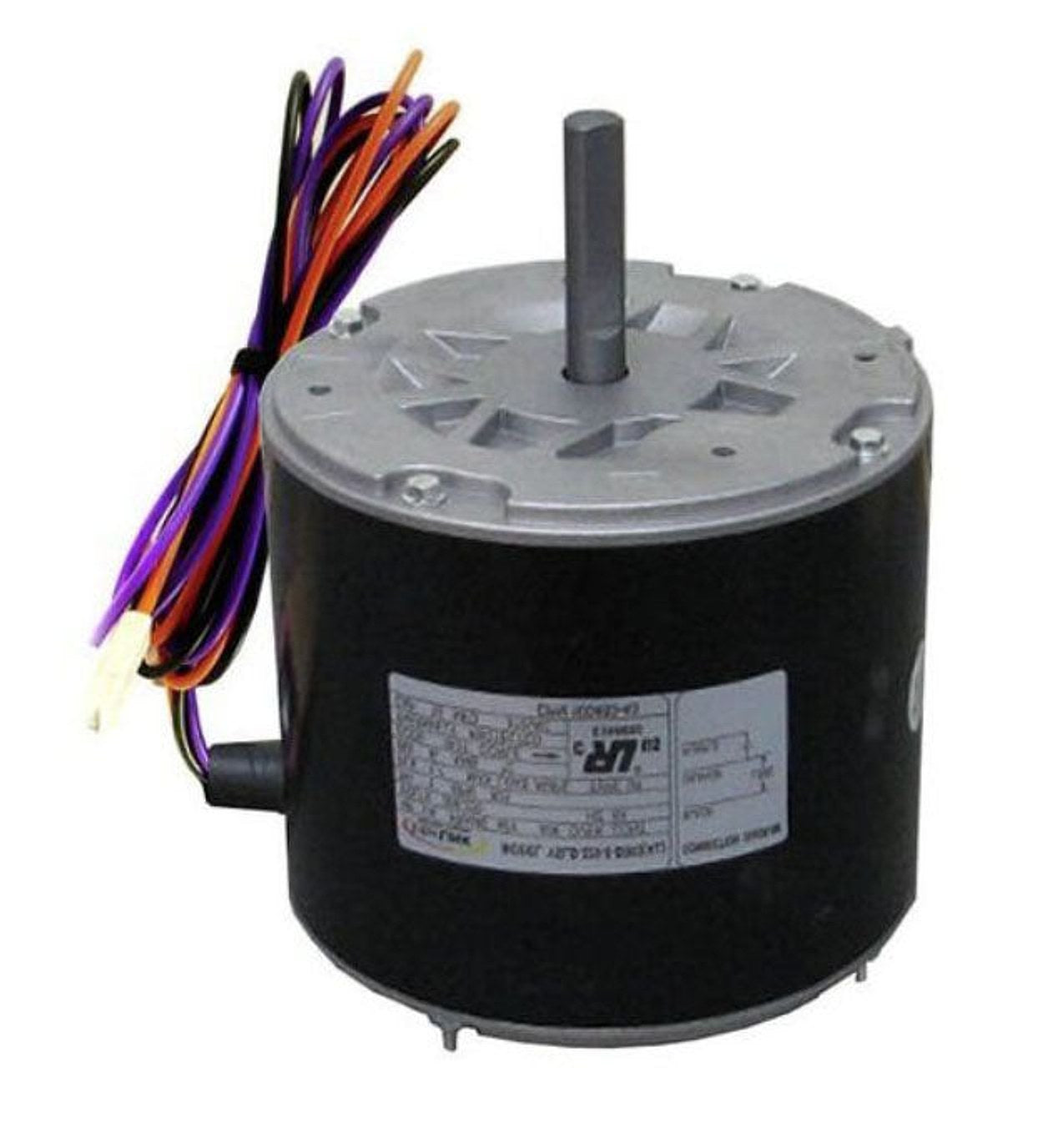

Armstrong 12Y65 Condenser Fan Motor

Armstrong 12Y65 Condenser Fan Motor is engineered for durable condenser airflow in commercial HVAC systems. This 1/4 HP motor runs on 208-230V AC, 1-Phase power at 60 Hz, delivering steady cooling and reliable performance in demanding environments.

Designed as a Permanent Split Capacitor (PSC) motor with a durable ball bearing system, it combines smooth operation with long life. The unit uses a NEMA 48 frame, CCW rotation (lead end), and Class B insulation, weighing 17.5 pounds for easy installation and compatibility.

• Power: 1/4 HP
• Voltage: 208–230V AC, 1-Phase
• Frequency: 60 Hz
• Speed: 825 RPM
• NEMA Frame: 48
• Insulation: Class B
• Rotation: Counter Clockwise (lead end)
• Bearings: Ball bearing
• Weight & Size: 17.5 lb; Ø 5.63" x H 7.18"
• Application: Condenser fan motor for HVAC
