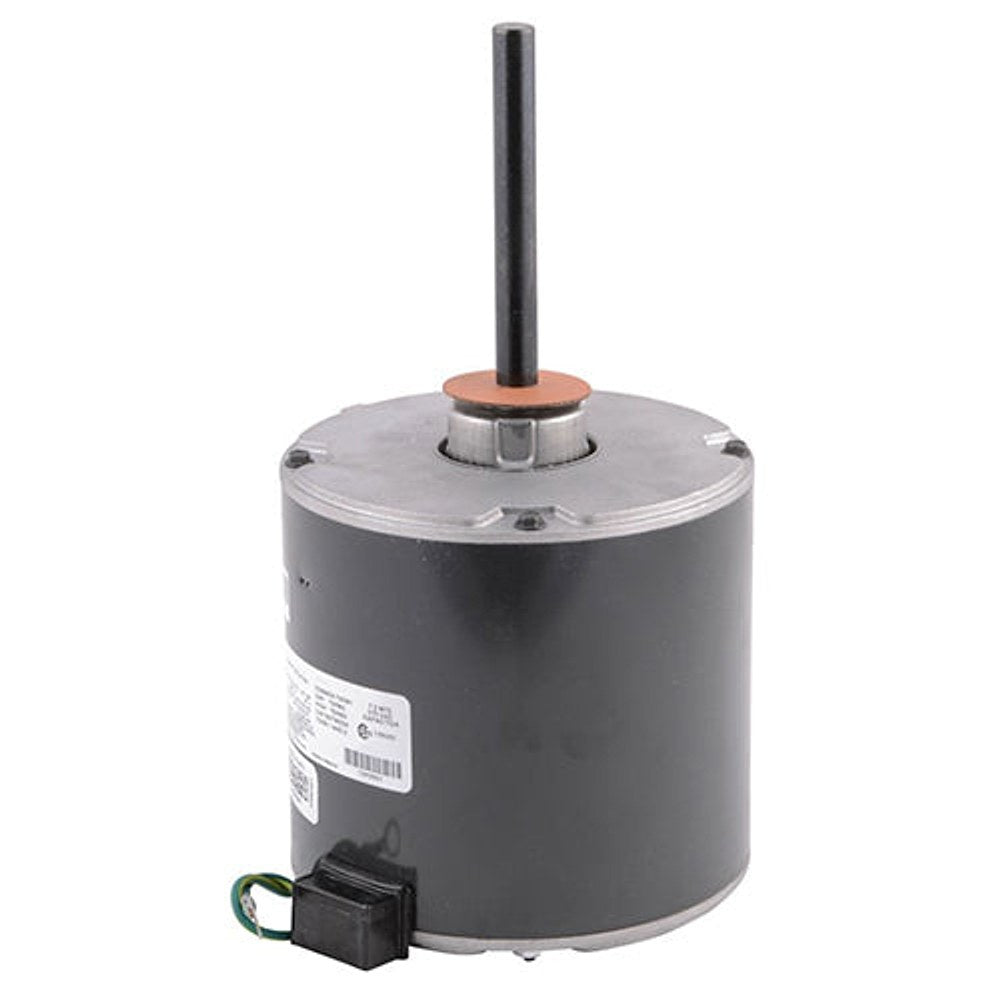

Armstrong 13H36 Condenser Fan Motor

Armstrong 13H36 Condenser Fan Motor is a dependable condenser fan motor built for durable HVAC and refrigeration applications. This 1/4 HP, single‑phase PSC motor runs on 208-230V AC with a 60 Hz frequency, delivering steady performance in demanding environments.

Designed for compatibility with standard condenser assemblies, it features a NEMA 48 frame, sleeve bearings, and a CCW rotation from the lead end. The insulation class B supports sustained operation, while a compact 5.63-inch diameter and 10.25-inch height keep it fitting in tight spaces. With a full-load current of 1.1 A and a rated speed of 825 RPM, it balances power and efficiency for reliable airflow.

Applications include condenser fans and other equipment requiring a durable PSC motor that matches 208-230V single-phase supply. The Armstrong 13H36 is built for performance and longevity, making it a solid choice for replacement or upgrade projects.

Key Features

• Power: 1/4 HP
• Voltage / Phase: 208-230V AC, 1-Phase
• Frequency: 60 Hz
• Speed: 825 RPM
• Frame: NEMA 48
• Motor Type: Permanent Split Capacitor (PSC)
• Bearings: Sleeve
• Rotation: Counterclockwise (lead end)
• Weight: 17.25 lb
• Dimensions: 5.63" diameter × 10.25" height
