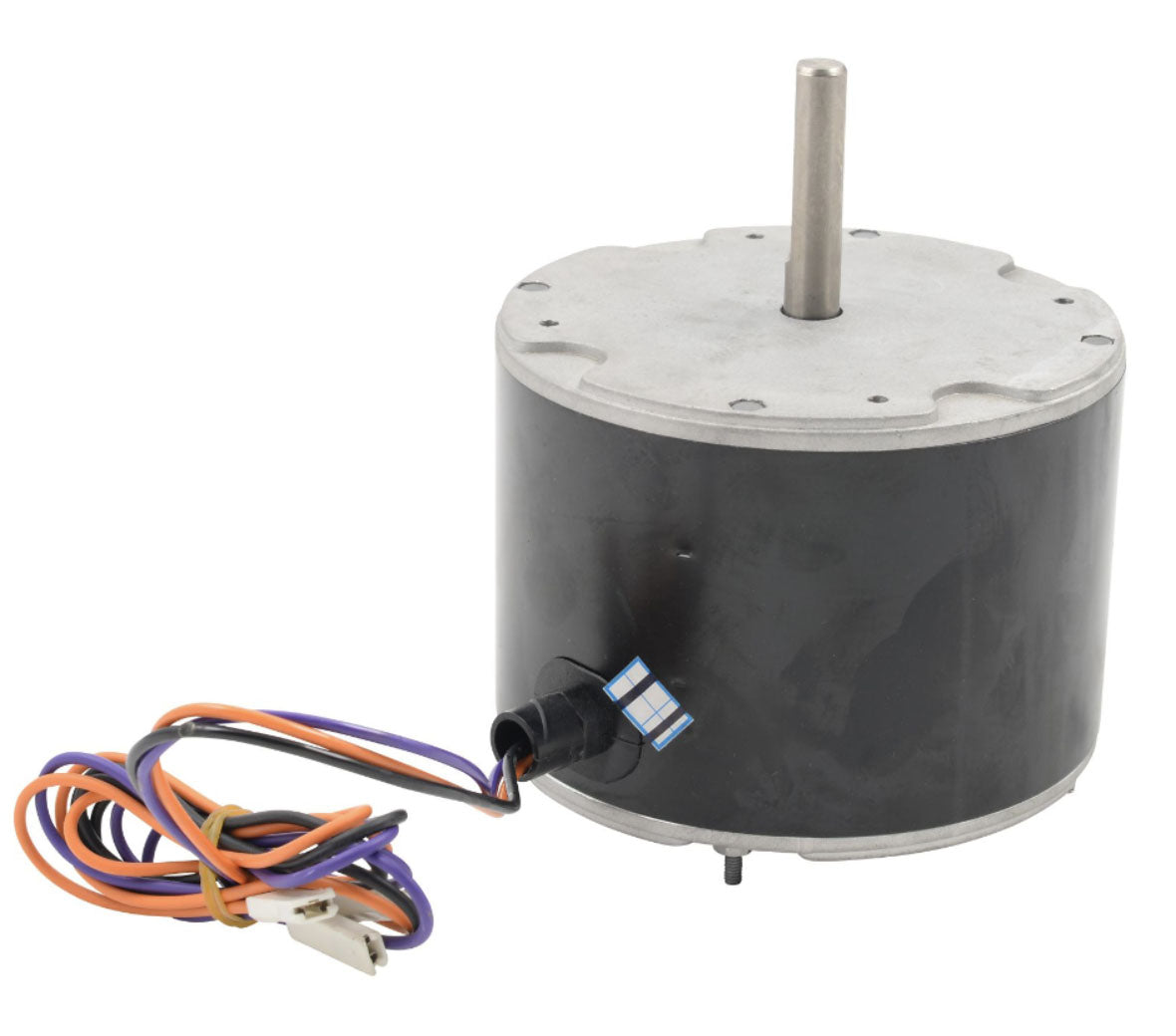

Armstrong 61W89 Condenser Fan Motor

Armstrong 61W89 Condenser Fan Motor is engineered for dependable condenser cooling in commercial HVAC systems.

This 1/4 HP PSC motor operates on 208-230V AC, 60 Hz, with a counterclockwise rotation for standard condenser setups. It delivers reliable start-up and steady performance in demanding cooling applications.

Designed for reliability in outdoor or indoor condenser applications, this Armstrong motor uses a permanent split capacitor design for smooth starting and efficient running. The Class B insulation supports operating temperatures in typical HVAC environments, while ball bearings deliver low maintenance and long life. It's ideal for replacing worn motors in Armstrong-compatible condensers, engineered to withstand 60 Hz service on 208-230V systems.

With a compact footprint, it fits in standard condensers thanks to a 5.625 inch diameter and 6.3 inch height, and the NEMA 48 frame keeps mounting and wiring consistent across compatible units. Rotation is counterclockwise at the lead end, aligning with conventional condenser fan wiring. This motor combines rugged design with easy installation for long life in condenser systems.

• Power rating: 1/4 HP
• Voltage: 208-230V AC, 1-Phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Frame: NEMA 48
• Insulation: Class B
• Bearings: Ball bearing
• Rotation: Counterclockwise (lead end)
• Weight and dimensions: 11.75 lbs; 5.625" diameter x 6.3" height
• Application: Condenser fan motor, Permanent Split Capacitor (PSC)
