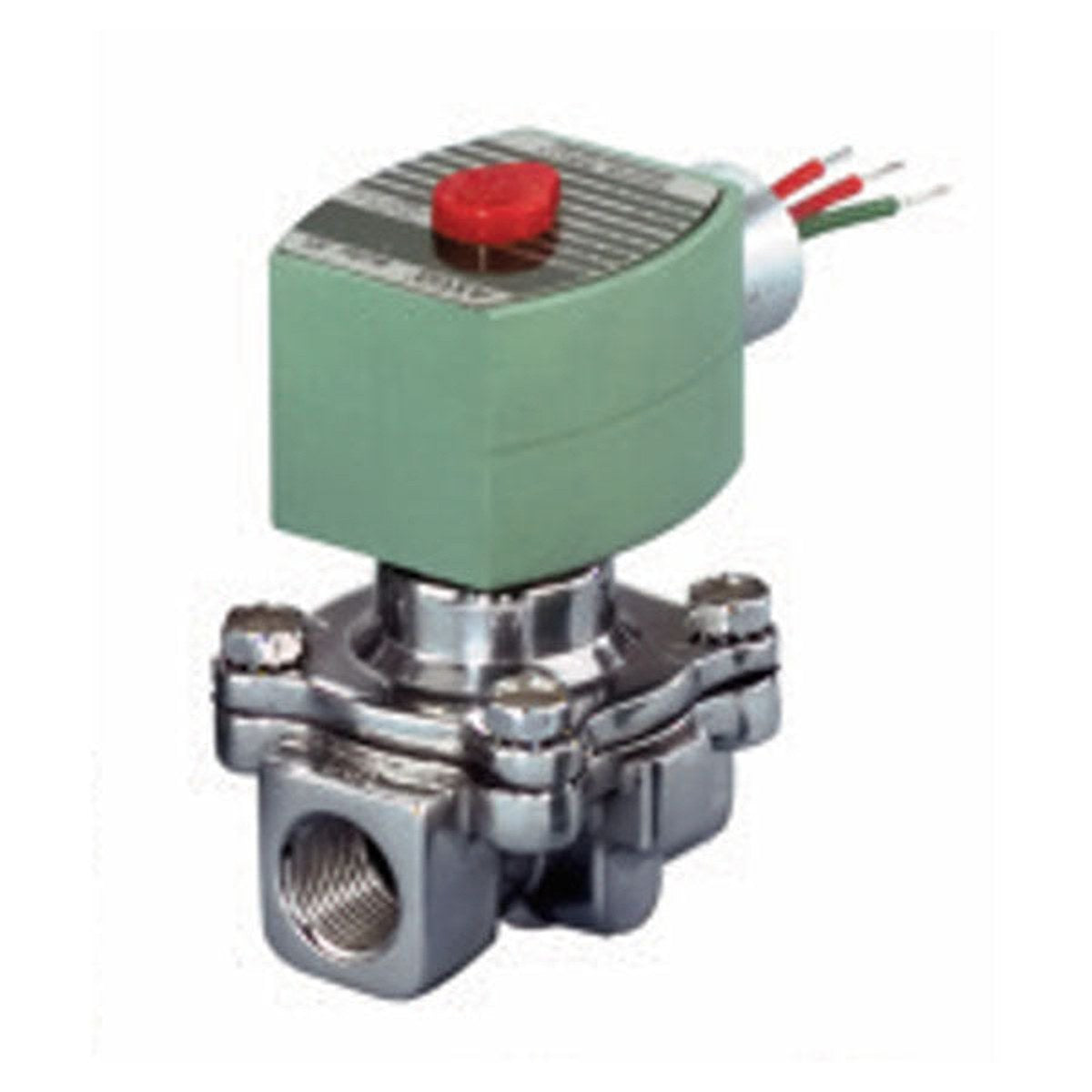

ASCO 8040G023 Solenoid Valve

ASCO 8040G023 Solenoid Valve

$270.36 USD
$270.36 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

76973

View full details

The ASCO 8040G023 Solenoid Valve delivers precise, dependable 2-way control for air and vacuum service. This 2-way, Direct Acting/Electrically/Piloted Operated valve features 3/4" threaded ports and a rugged aluminum body for lightweight strength. Designed for 24 V AC input at 60 Hz, it provides reliable performance with a Cv of 9.5 across a 0–2 psi range for air or fuel gas. The valve's NEMA 1/2/3/3S/4/4X RedHat II enclosure supports installation in demanding environments, with vertical/upright mounting options. It is UL, CSA, CE, and FM certified and ready for integration into control systems.

  • 2-way valve configuration for simple on/off control
  • Direct Acting / Piloted operation for fast response
  • 3/4" threaded ports with aluminum body for durability
  • Media: air and fuel gas (low pressure)
  • NEMA enclosure rated for varied environments
  • Electrical: 24 VAC, 60 Hz; ~10.1 W
  • Materials: NBR seals, PTFE rider ring, stainless steel core/parts
  • Standards: UL, CSA, CE, FM certified
  • Mounting: vertical/upright installation

Specifications

Type2-Way, Direct Acting/Electrically/Piloted Operated
Pressure Rating0 to 2 PSI AC (Air/Fuel Gas)
Temperature Rating125 Deg F AC (Fluid)
Input Supply24 Volt AC at 60 Hertz
ApplicationAir and Vacuum Service
Body MaterialAluminum
Port Connection3/4 Inch Threaded x 3/4 Inch Threaded
StandardsUL, CSA (Canada and US), CE, FM
Enclosure TypeNEMA 1/2/3/3S/4/4X, RedHat II
IncludesNBR Seal/Diaphragm/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, Orifice
MediaAir, Fuel Gas
Valve PositionNC
Mounting DetailsVertical/Upright Installation
