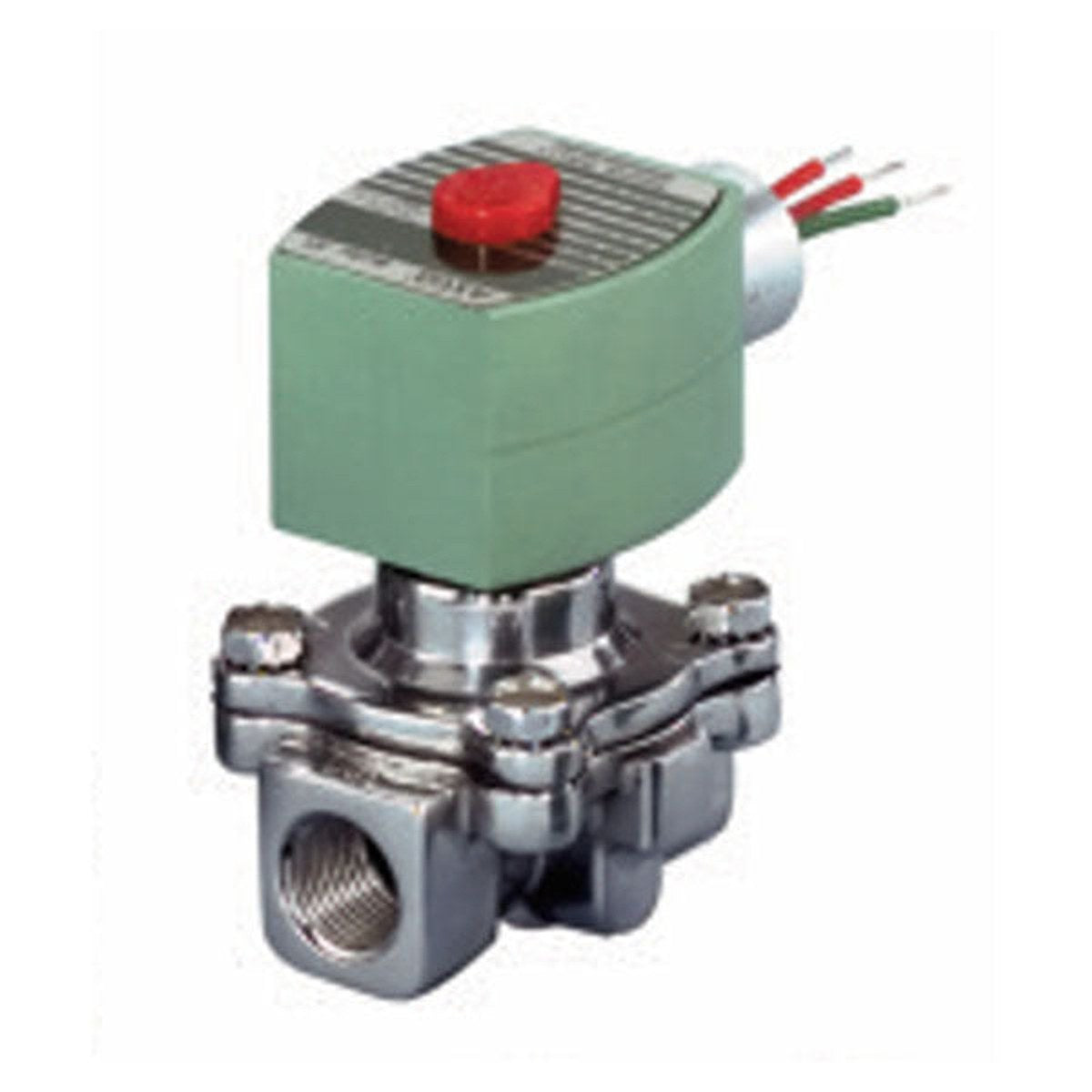

ASCO 8040H006 Solenoid Valve

Name: ASCO 8040H006 Solenoid Valve
Brand: ASCO CONTROLS
SKU: 76974
Price: 136.22 USD
Availability: InStock

ASCO 8040H006 Solenoid Valve

$136.22 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

SKU:76974

View full details

The ASCO 8040H006 Solenoid Valve delivers reliable 2-way, direct-acting control for air and fuel gas applications. This valve is electrically operated and piloted-capable, giving flexible actuation for demanding systems. With a rugged aluminum body and a wide range of enclosures (NEMA 1/2/3/3S/4/4X, RedHat II), it is built to endure challenging environments. Ports are 1/8 in NPT, and installation can be vertical/upward for convenient mounting. Operating from 120 VAC at 60 Hz or 110 VAC at 50 Hz, it supports temperatures up to 125°F and pressures from 0 to 15 psi in air or fuel gas service. Construction includes NBR seal/diaphragm, PTFE rider ring, stainless steel core tube, and copper shading coil, ensuring durable performance. Standards UL, CSA, CE, FM ensure compliance.

Cv value: 1
Power rating: 6.1 W AC
Port connections: 1/8 in NPT x 1/8 in NPT
Body: Aluminum
Enclosure: NEMA 1/2/3/3S/4/4X, RedHat II
Media: Air, Fuel Gas
Mounting: Vertical/Upright
Temperature: 125°F max
Pressure: 0–15 psi
Certifications: UL, CSA, CE, FM

Specifications

Type	2-Way, Direct Acting/Electrically/Piloted Operated
Pressure Rating	0 to 15 PSI AC (Air/Fuel Gas)
Temperature Rating	125 Deg F AC (Fluid)
Input Supply	120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
Application	Air and Vacuum Service
Body Material	Aluminum
Port Connection	1/8 Inch Threaded x 1/8 Inch Threaded
Standards	UL, CSA (Canada and US), CE, FM
Enclosure Type	NEMA 1/2/3/3S/4/4X, RedHat II
Includes	NBR Seal/Diaphragm/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, Orifice
Media	Air, Fuel Gas
Valve Position	NC
Mounting Details	Vertical/Upright Installation
