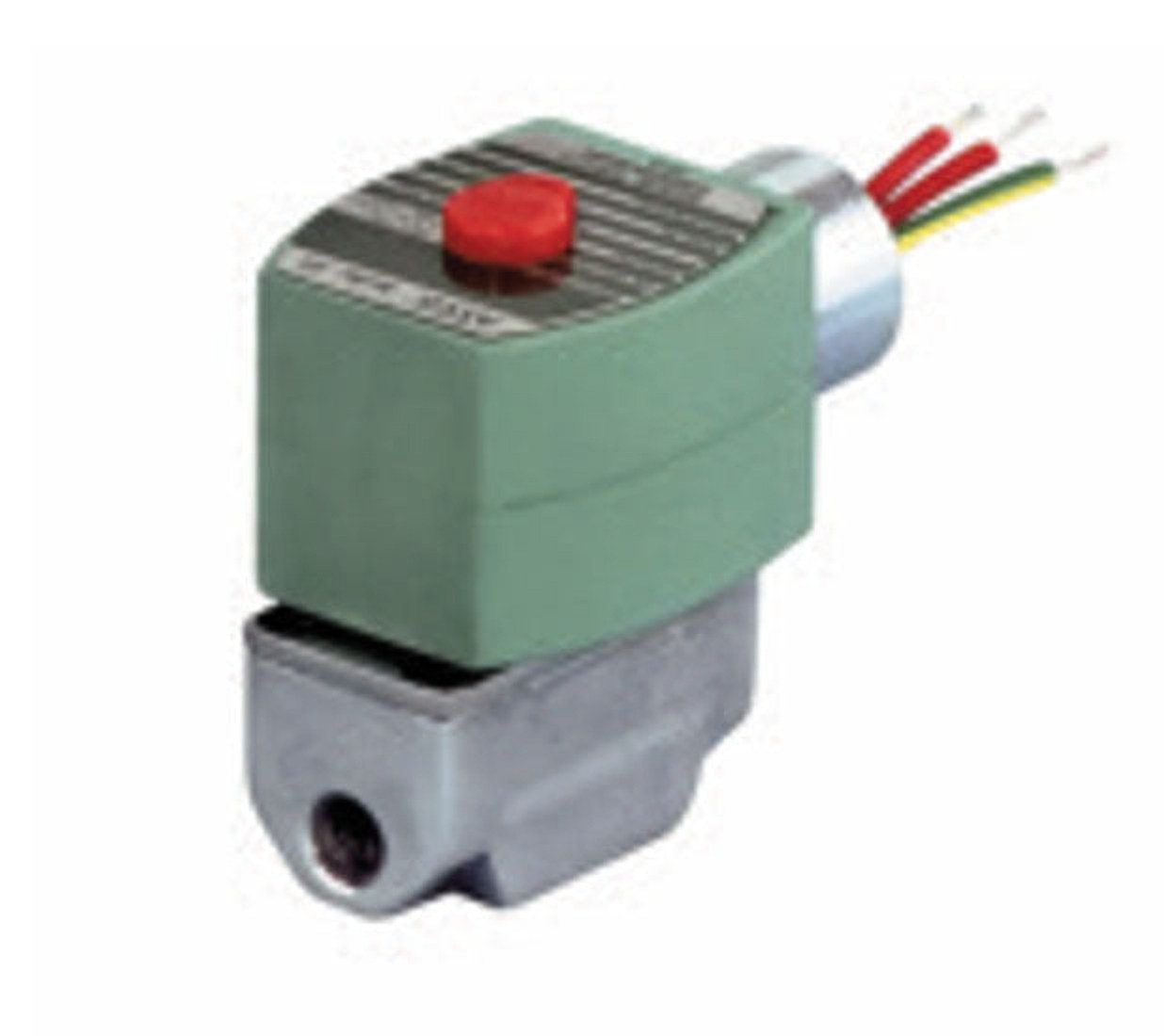

ASCO 8040H007 Solenoid Valve

ASCO 8040H007 Solenoid Valve delivers reliable 2-Way, direct-acting (electrically/piloted) control in a compact aluminum body. This normally closed (NC) valve is built for air and vacuum service, featuring a 1/4 inch port connection and a rugged enclosure (NEMA 1/2/3/3S/4/4X, RedHat II) for harsh industrial environments. It operates from either 120 VAC at 60 Hz or 110 VAC at 50 Hz, providing flexible installation options. With a pressure range of 0 to 15 PSI and a temperature rating up to 125°F, it offers dependable performance across typical process conditions. The Cv value of 1.1 ensures solid flow, while a 6.1 W power draw keeps energy use efficient. Compliance with UL, CSA, CE, and FM standards guarantees safety and compatibility.

• Type: 2-Way Direct Acting / Electrically / Piloted
• Port Connection: 1/4" Threaded
• Valve Position: Normally Closed (NC)
• Body Material: Aluminum
• Enclosure: NEMA 1/2/3/3S/4/4X, RedHat II
• Electrical Supply: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz
• Media: Air, Fuel Gas
• Temperature Rating: Up to 125°F
• Pressure Rating: 0–15 PSI
• CV: 1.1
• Power: 6.1 W
• Insulation: Class F
• Standards: UL, CSA, CE, FM
• Mounting: Vertical / Upright
