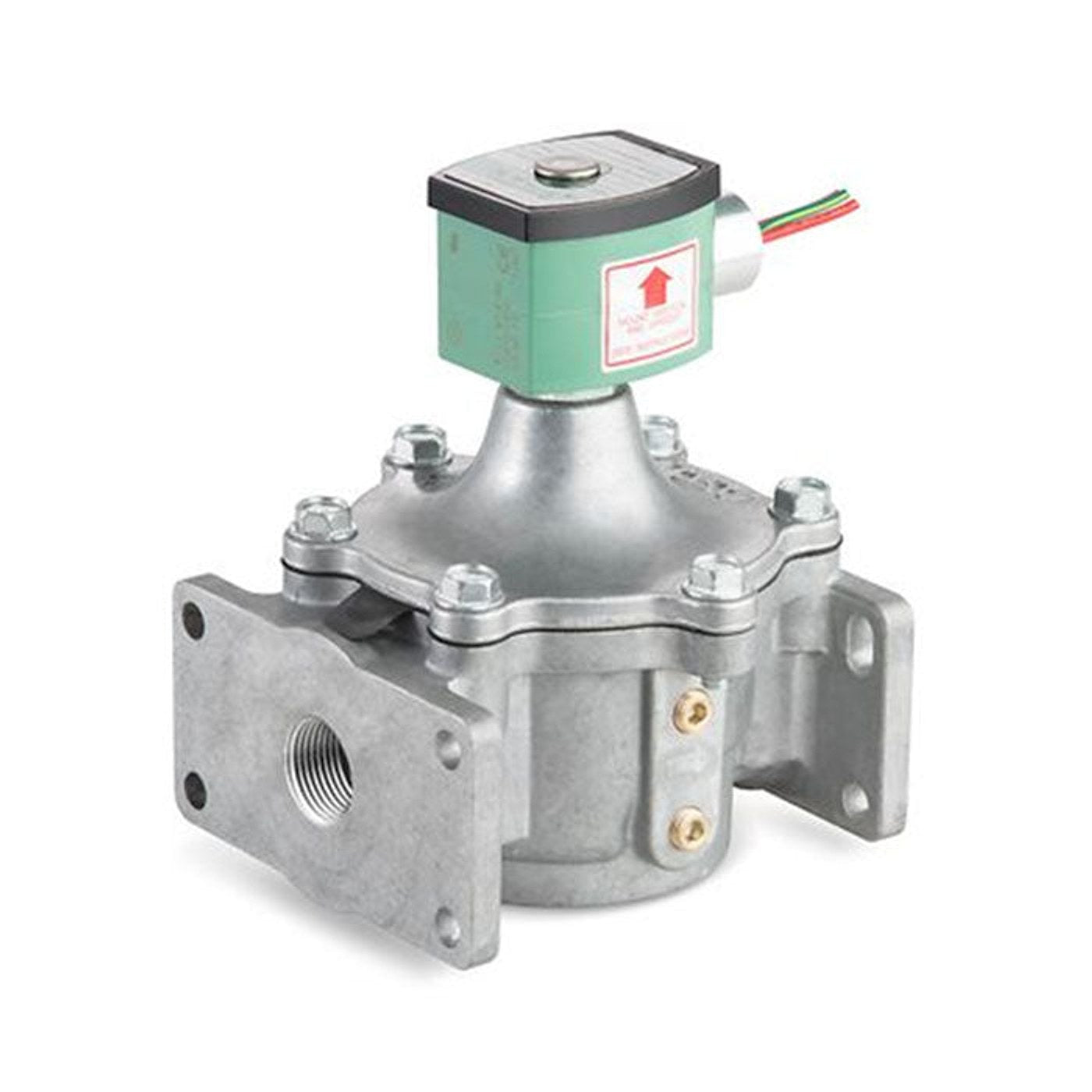

ASCO 8214G030 Gas Shut-Off Valve

ASCO 8214G030 Gas Shut-Off Valve delivers reliable control for fuel gas lines. This 2-Way, unique Double Disc, pilot-operated diaphragm valve provides fast, precise shut-off in demanding city gas applications. Designed for rugged environments, the aluminum body and sturdy enclosure meet multiple NEMA ratings (1/2/3/3S/4/4X, RedHat II) to protect internal components. Ready for common electrical supplies, it accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a power draw of 17.1 W (AC) or 22.6 W (DC). The valve is normally closed (NC) and features 3/4 inch threaded port connections on both ends for easy integration into existing gas lines. Key specifications ensure compatibility with fuel gas systems, including a 0–5 psi pressure rating, a 125°F temperature rating (AC/DC), and a Cv of 5.1 for consistent flow control. The valve is designed for vertical/upright mounting and is intended for city gas applications, with reliable actuation and a robust seal that minimizes leaks. < Ul >

Type: 2-Way

Actuation: Pilot Operated, Diaphragm

Port Connections: 3/4" Threaded x 3/4" Threaded

Position: Normally Closed (NC)

Body: Aluminum

Enclosure: NEMA 1/2/3/3S/4/4X, RedHat II

Electrical: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz; 17.1 W (AC), 22.6 W (DC)

Temperature: 125°F

Pressure: 0–5 PSI

Mounting: Vertical/Upright

Media: Fuel Gas

Cv: 5.1

Inclusions: Water Tight, Orifice

< /Ul > Optimized for reliability, the ASCO 8214G030 is an excellent choice for city gas networks requiring precise, durable shut-off performance with straightforward installation.
