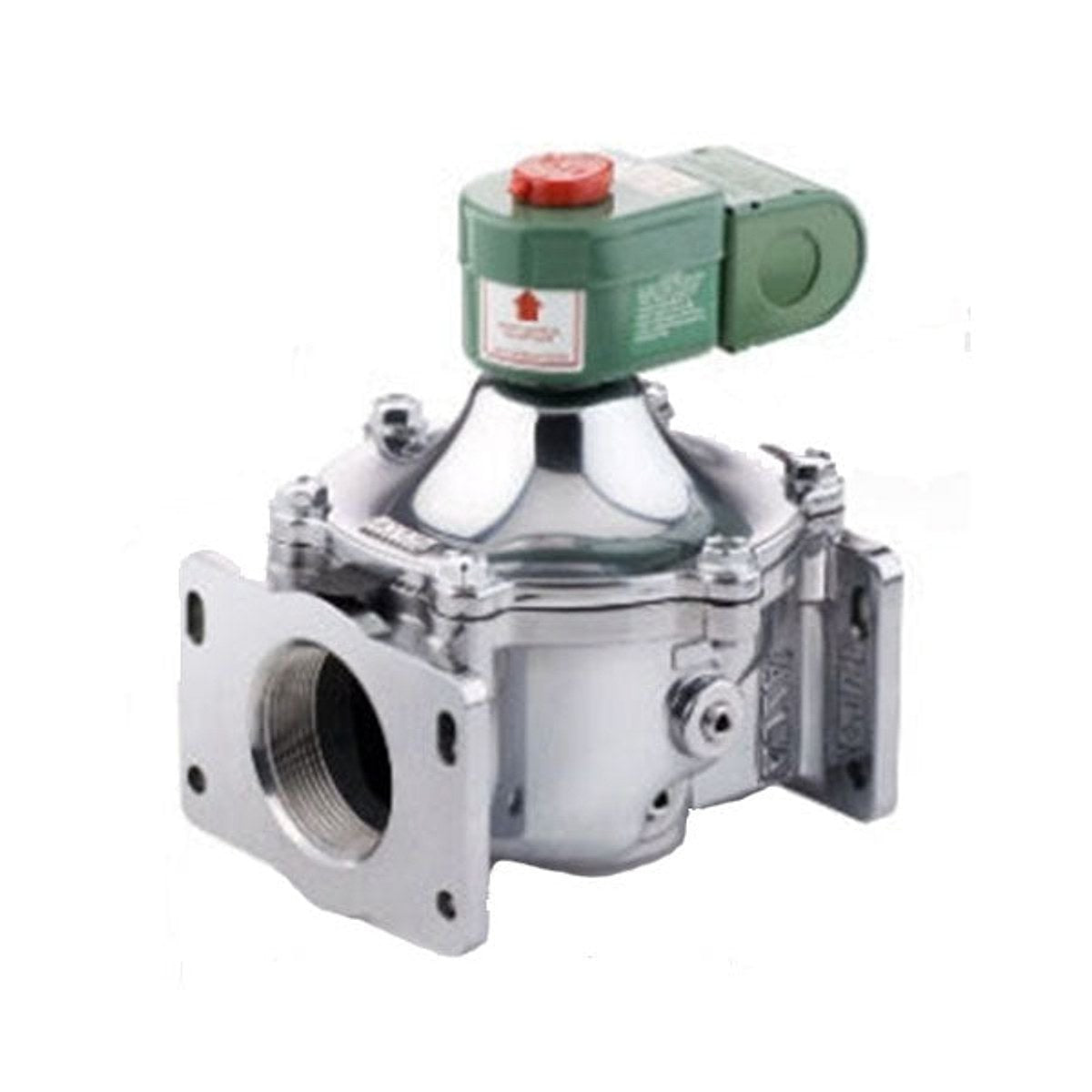

ASCO 8214G236 Gas Shut-Off Valve

The ASCO 8214G236 Gas Shut-Off Valve is a reliable 2-Way shut-off with a unique double-disc design. This pilot-operated diaphragm gas valve delivers precise control for commercial and industrial gas burners.

Engineered for safety and durability, it features 3/4 inch threaded port connections, an aluminum body, and a NEMA 4/4X enclosure for rugged indoor/outdoor service. It operates on 120 VAC at 60 Hz and is rated for 0–5 psi fuel gas.

• Type: 2-Way, Normally Closed (NC)
• Design: Pilot-Operated Diaphragm with Unique Double Disc
• Port Connections: 3/4" Threaded x 3/4" Threaded
• Body & Enclosure: Aluminum Body; NEMA 4/4X
• Electrical: 120 VAC, 60 Hz; Power 20.1 W AC / 15.8 W DC
• Media & Pressure: Fuel Gas; 0–5 psi; Temperature 125°F
• Mounting: Vertical/Upright Installation
• Certifications: UL, CSA, FM
• Key Materials: NBR Seal & Disc; 305 SS Core Tube; PTFE Rider Ring; 430F SS Core & Plugnut; 302 SS Spring

Ideal for installations requiring UL, CSA, and FM compliance, this valve delivers dependable shut-off performance and long service life in demanding environments.
