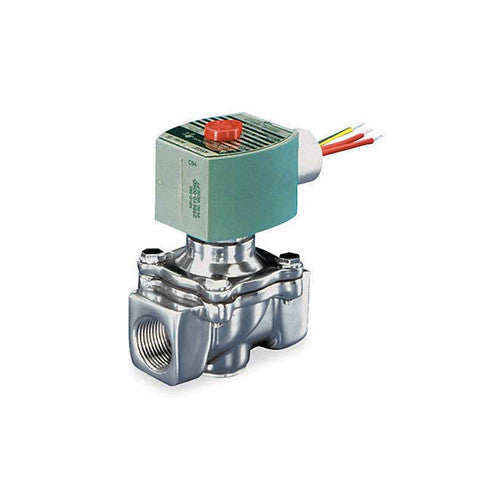

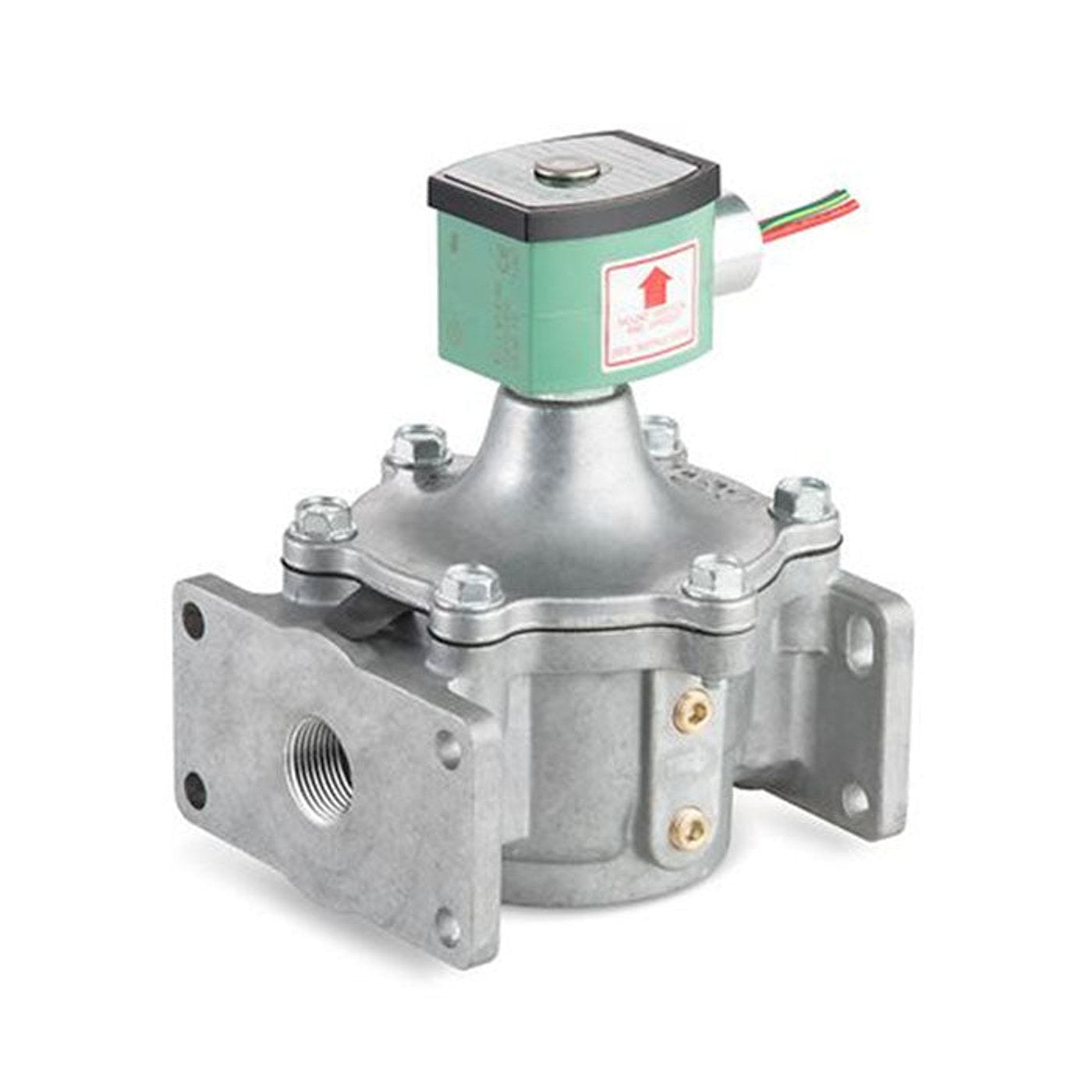

ASCO 8214G261 Gas Shut-Off Valve

The ASCO 8214G261 Gas Shut-Off Valve delivers precise control for commercial and industrial gas burners. This 2-way, pilot-operated valve features a unique double disc and diaphragm design for reliable shut-off in demanding applications. The aluminum body is built to withstand tough environments, and the enclosure (NEMA 1/2/3/3S/4/4X, RedHat II) supports both indoor and outdoor installations. With 1-1/4 inch threaded ports and a normally closed (NC) position, it delivers dependable fuel gas shut-off in tight spaces.

Operating voltage is 120 VAC at 60 Hz, with a power draw of 20.1 W (AC) or 15.8 W (DC). The valve handles fuel gas at pressures from 0 to 0.3 psi and is rated for temperatures up to 52°F. It is UL, CSA (Canada and US), and FM listed, ensuring dependable compliance for commercial and industrial gas burners.

• Type: 2-Way, unique Double Disc, Pilot Operated, Diaphragm
• Ports: 1-1/4" Threaded x 1-1/4" Threaded
• Position: Normally Closed (NC)
• Body & Enclosure: Aluminum body; NEMA 1/2/3/3S/4/4X, RedHat II
• : 120 VAC, 60 Hz; Power 20.1 W (AC) / 15.8 W (DC)
• Media & Temperature: Fuel gas; Temperature rating 52°F
• Pressure: 0–0.3 psi
• Standards: UL, CSA (Canada/US), FM
• Mounting: Vertical/Upright
