ASCO 8215B050CSA Solenoid Valve

Name: ASCO 8215B050CSA Solenoid Valve
Brand: ASCO CONTROLS
SKU: 100764
Price: 573.73 USD
Availability: InStock

ASCO 8215B050CSA Solenoid Valve

$573.73 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 3 left

SKU:100764

View full details

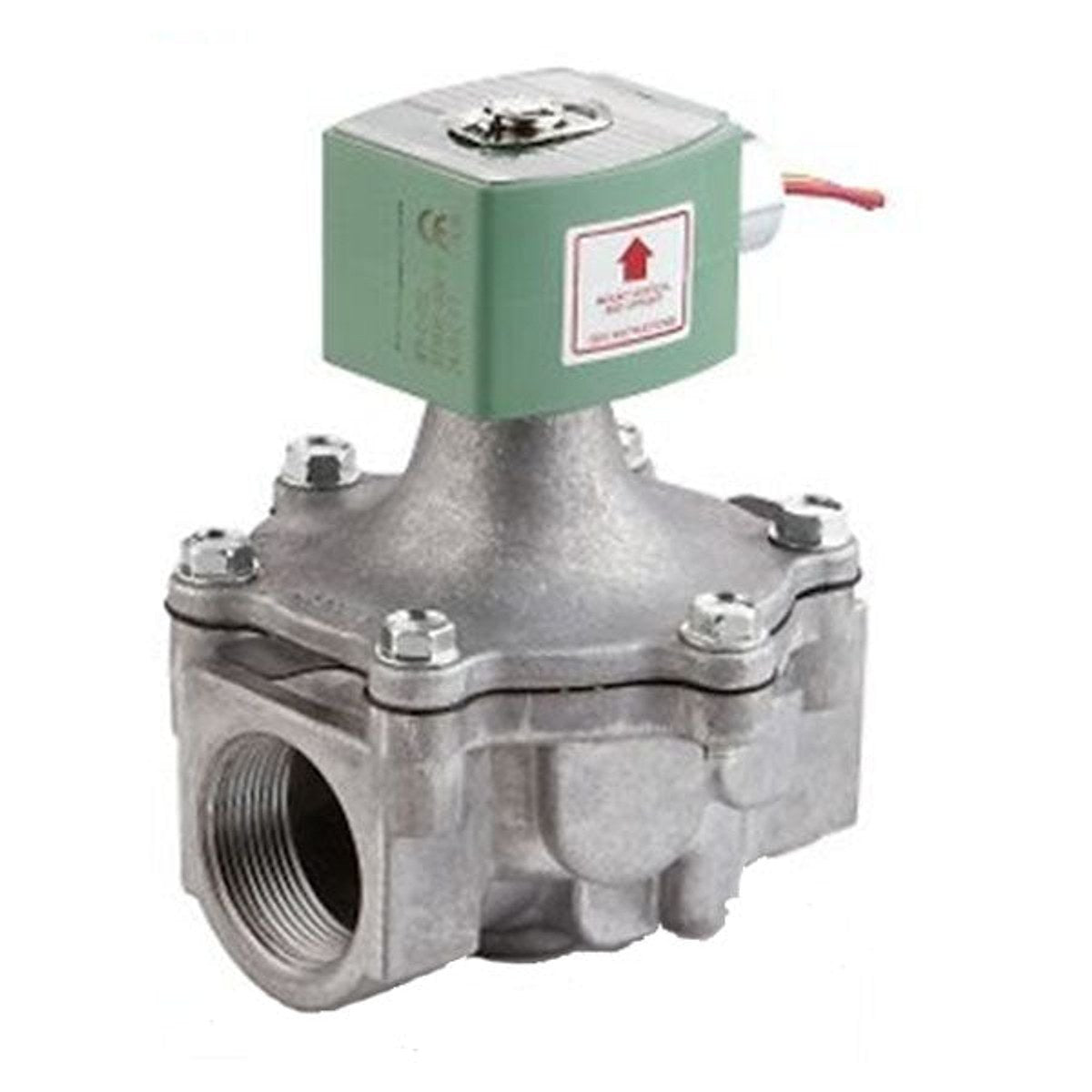

Introducing the ASCO 8215B050CSA Solenoid Valve, a compact, 2‑Way, direct‑acting valve engineered for dependable control of air and fuel gas. This model features a 24 VAC, 60 Hz coil, a 1 inch threaded port connection, and an aluminum body built for durability. The enclosure meets multiple industry standards (NEMA 1/2/3/3S/4/4X, RedHat II), making it a flexible choice for demanding environments.

With a 0–25 PSI operating range and a 125°F temperature rating, it delivers precise, energy‑efficient performance in air and vacuum service. Key specifications include a lightweight, low‑cost design and robust internal components for long service life.

2‑Way, direct‑acting design (electrically/piloted operated) for reliable on/off control
1" Threaded x 1" Threaded port connections for easy integration
Aluminum body with NEMA 1/2/3/3S/4/4X, RedHat II enclosure for versatile installation
24 VAC, 60 Hz coil; 15.4 W power; insulation class F
Media: air and fuel gas; suitable for air and vacuum service; Cv 21
Standards: UL, CSA, CE, FM compliant; vertical/upright mounting

Specifications

Type	2-Way, Direct Acting/Electrically/Piloted Operated
Pressure Rating	0 to 25 PSI AC (Air/Fuel Gas)
Temperature Rating	125 Deg F AC (Fluid)
Input Supply	24 Volt AC at 60 Hertz
Application	Air and Vacuum Service
Body Material	Aluminum
Port Connection	1 Inch Threaded x 1 Inch Threaded
Standards	UL, CSA (Canada and US), CE, FM
Enclosure Type	NEMA 1/2/3/3S/4/4X, RedHat II
Includes	Lightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice
Media	Air, Fuel Gas
Valve Position	NC
Mounting Details	Vertical/Upright Installation
