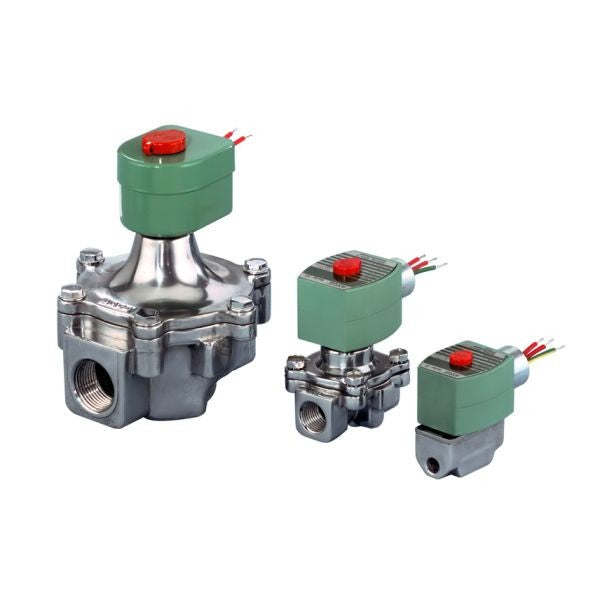

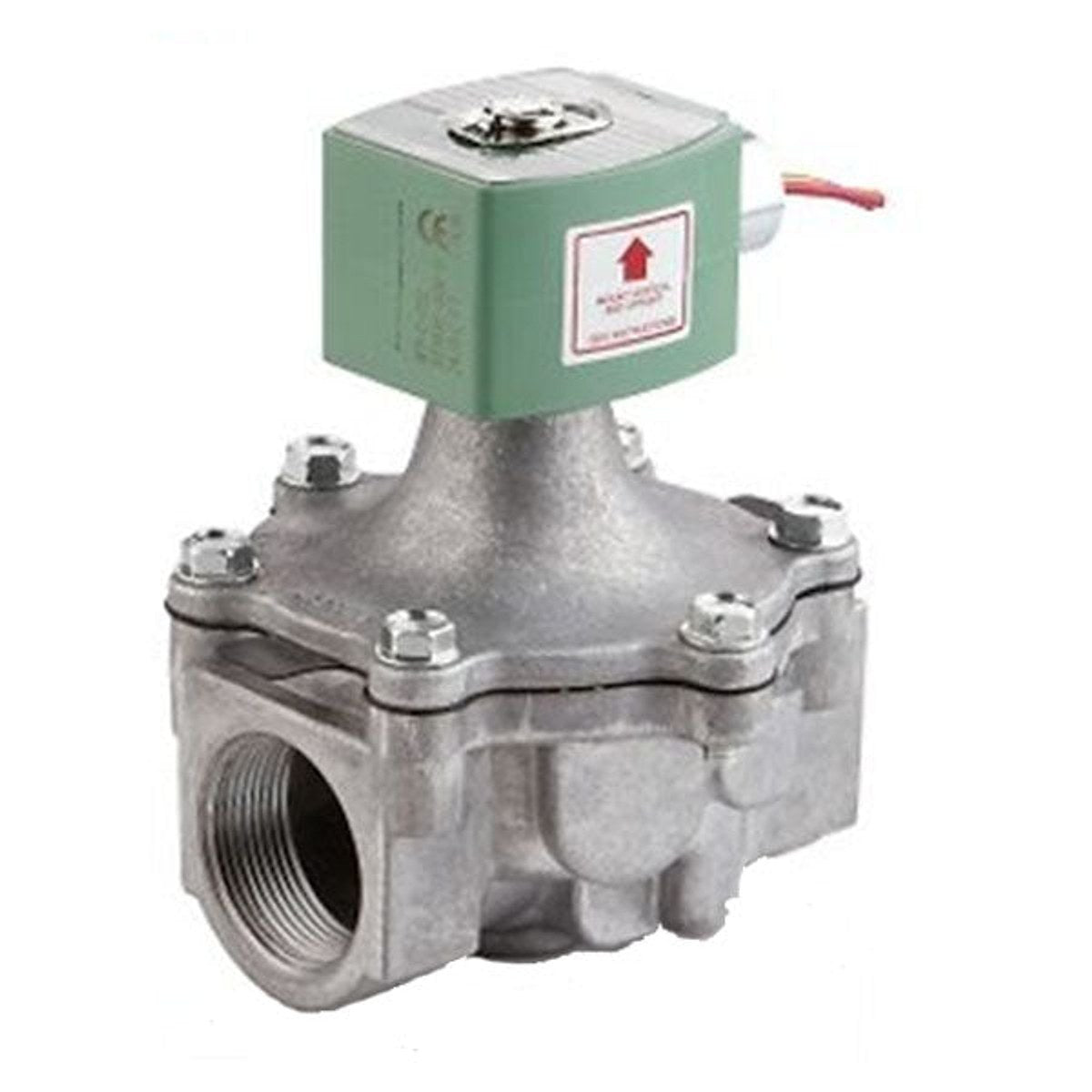

ASCO 8215B070CSA Solenoid Valve

ASCO 8215B070CSA Solenoid Valve is a 2‑way, direct-acting valve designed for precise control of air and fuel gas, operable electrically or via piloting. This normally closed (NC) unit combines durability with a compact aluminum body and a rugged enclosure suitable for UL, CSA, CE, and FM environments.

The valve features port connections of 1-1/2" threaded x 1-1/2" threaded and a compact power draw of 15.4 W. It supports 120 VAC at 60 Hz or 110 VAC at 50 Hz, with a Cv of 35 and a pressure rating of 0–25 PSI for air/fuel gas. Rated to 125°F, it is well suited for air and vacuum service in demanding automation systems.

• 2‑way, NC operation for reliable on/off control
• Direct acting/electrically or piloted operated design
• Aluminum body with NEMA enclosure ratings: 1/2/3/3S/4/4X, RedHat II
• Media: Air and Fuel Gas (also suitable for vacuum service)
• Materials: NBR diaphragm/seal/disc; PTFE rider; stainless steel core tube and plugnut; copper shading coil
• Port connections: 1-1/2" threaded x 1-1/2" threaded
• Standards: UL, CSA, CE, FM
• Operating specs: 0–25 PSI, 125°F, 15.4 W
• Mounting: Vertical/Upright installation
