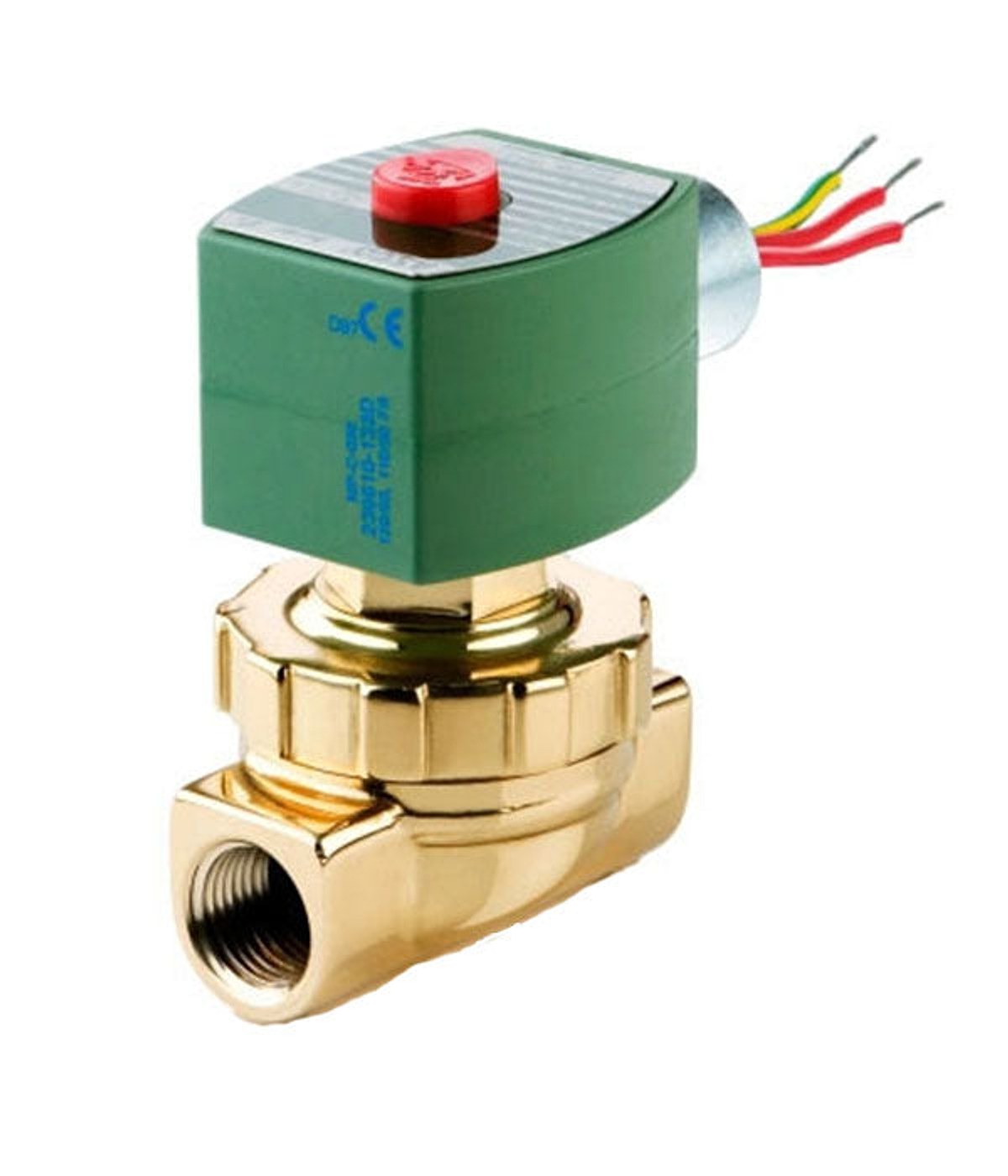

ASCO 8220G007 Solenoid Valve

ASCO 8220G007 Solenoid Valve

$674.85 USD
$674.85 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

65630

View full details

ASCO 8220G007 Solenoid Valve offers reliable control for steam and hot water systems. This 2-way normally closed brass valve features 1" NPT threading and supports dual voltage operation of 120/60 VAC or 110/50 VAC.

Built for durability, the brass body provides long service life in heating lines, while the compact design fits tight installations. The valve seals securely at modest system pressures up to 5 PSI, making it ideal for boiler feed lines and other hot water applications.

  • 2-Way Normally Closed (N.C.) configuration for precise shutoff
  • Brass construction for corrosion resistance
  • 1" NPT threaded connections
  • Dual voltage: 120/60 VAC or 110/50 VAC
  • Suitable for steam and hot water lines up to 5 PSI
  • Reliable solenoid actuation for HVAC and process applications

Specifications

Type2-Way, Pilot Operated, Diaphragm, Piston
Pressure Rating5 to 50 PSI AC (Steam)/5 to 150 PSI AC (Hot Water)
Temperature Rating300 Deg F AC Steam/210 Deg F DC Hot Water (Fluid)
Input Supply120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
ApplicationHot Water Service, Laundry, Molding, Steam Atomization, Sterilizer, Autoclave
Body MaterialBrass
Port Connection1 Inch Threaded x 1 Inch Threaded
StandardsUL, CSA, CE
Enclosure TypeNEMA 1/2/3/3S/4/4X, RedHat II
IncludesStainless Steel/PTFE Piston/Diaphragm, EPDM/PTFE Disc, EPDM/PTFE/TFE/P Seal, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper/Silver Shading Coil, Orifice
MediaSteam, Hot Water
Valve PositionNC
Mounting DetailsVertical/Upright Installation
