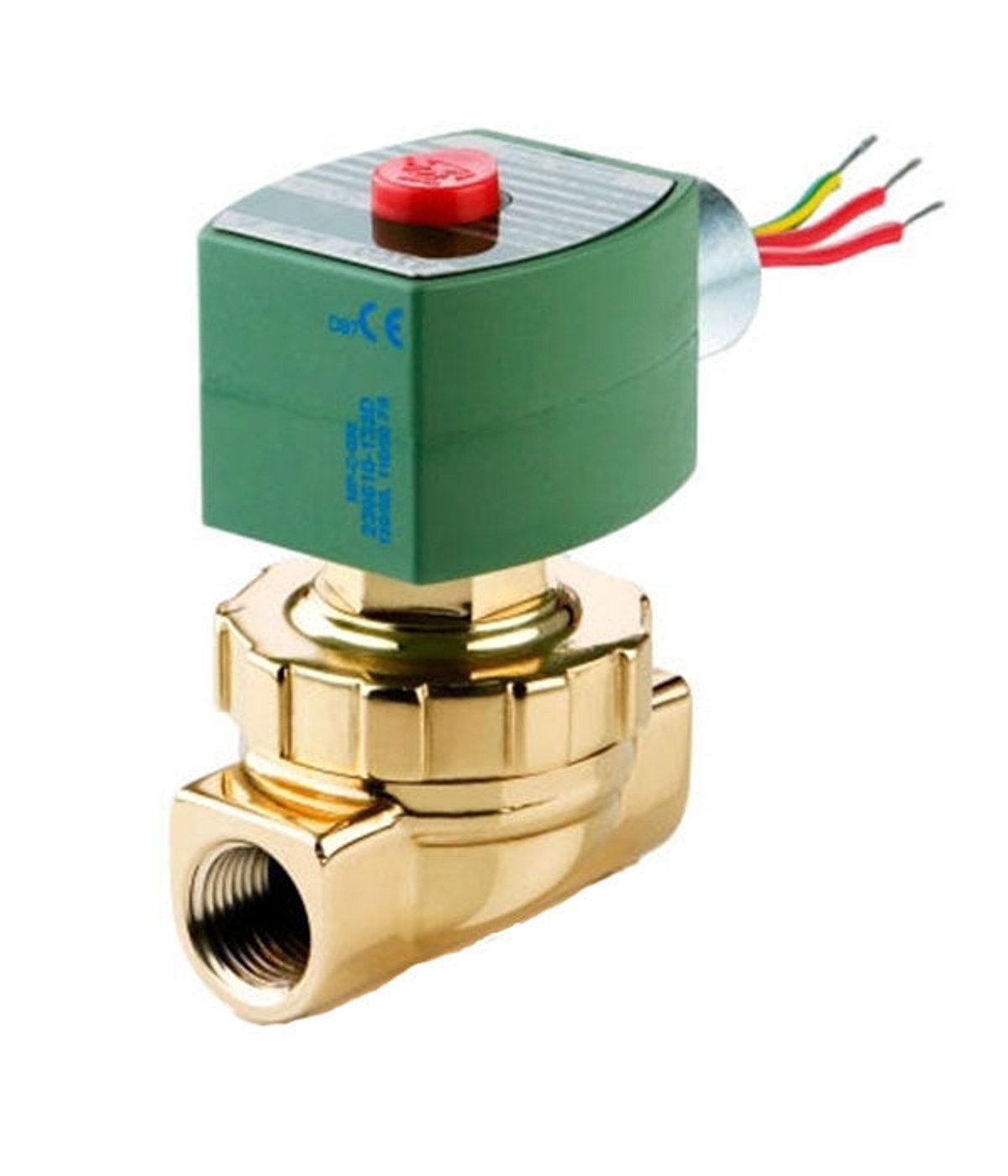

ASCO 8220G025 Solenoid Valve

The ASCO 8220G025 Solenoid Valve is a rugged, 2-Way, pilot-operated valve designed for steam and hot water service. Its brass body and diaphragm-piston assembly deliver reliable actuation in demanding environments.

Key specs include 1 inch port connections, vertical upright mounting, and a RedHat II enclosure suitable for UL, CSA, and CE standards. The valve operates on 120 VAC at 60 Hz or 110 VAC at 50 Hz, handling temperatures up to 353°F for steam and 210°F for hot water (DC). It supports pressure ranges from 5 to 125 PSI (steam) and 5 to 150 PSI (hot water), making it versatile for multiple applications and service conditions.

• 1" NPT port connections (1" threaded x 1" threaded)
• Brass body with 305 stainless steel core tube and 302 stainless steel spring, plus 430F stainless steel core/plugnut
• Diaphragm and piston seals in EPDM/PTFE
• Copper/Silver shading coil for reliable actuation
• Enclosure: NEMA 1/2/3/3S/4/4X RedHat II; UL/CSA/CE compliant
• Voltage options: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz; Power: 10.1 W; Cv: 13.5

Designed for hot water service, laundry, molding, steam atomization, sterilizers, and autoclaves, this valve combines durability with precise control in a compact package.
