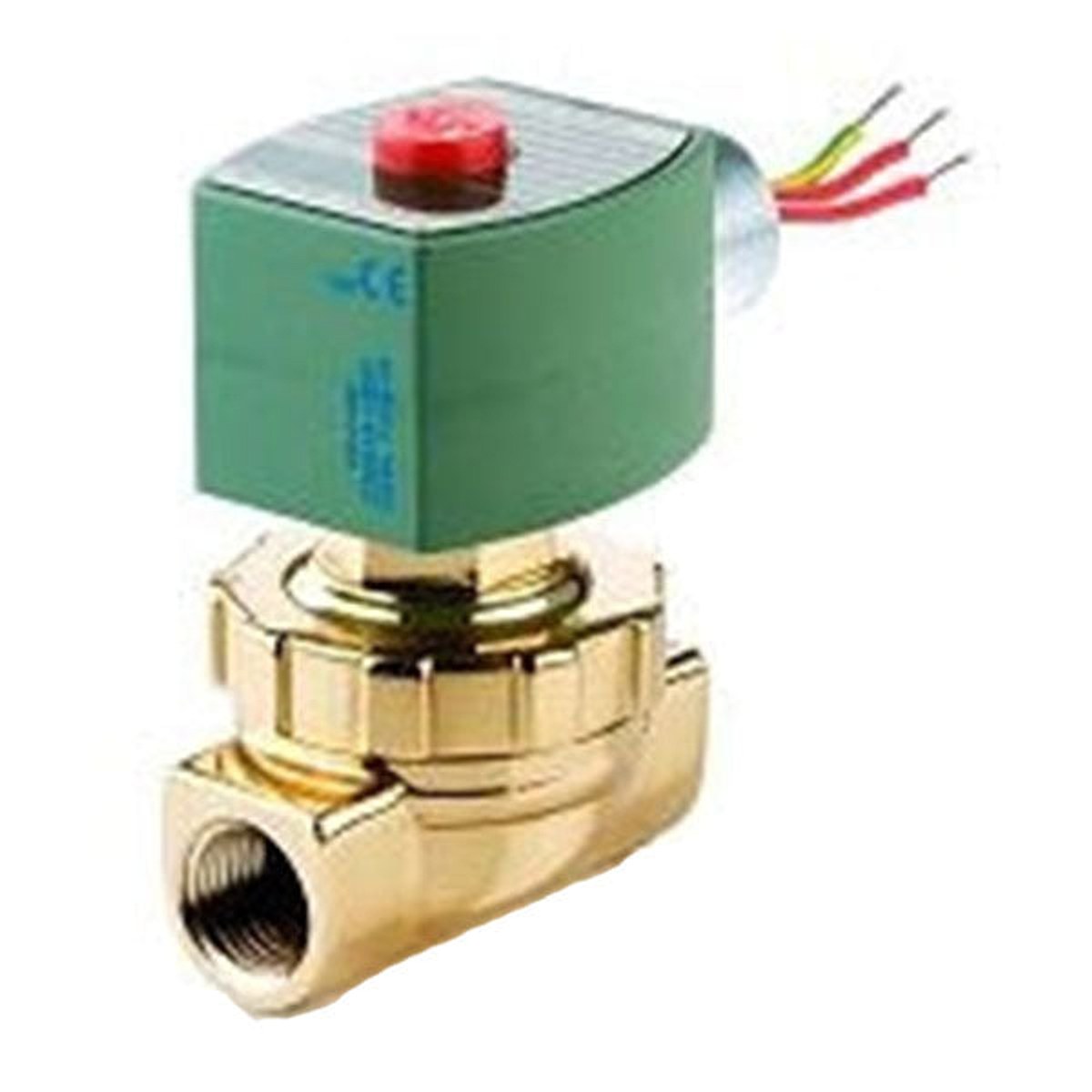

ASCO 8222G095 Solenoid Valve

The Solenoid Valve ASCO 8222G095 delivers precise control for steam systems. This 2-Way, pilot-operated valve uses a diaphragm-and-piston design with a brass body for dependable performance in commercial kitchens, laundries, heating equipment, and sterilization environments.

Rated for 120V AC at 60 Hz (or 110V AC at 50 Hz) and a temperature rating of 300°F, it handles steam pressures from 0 to 50 PSI. The valve is normally closed (NC), mounts vertically, and is built with durable materials including a 305 stainless steel core tube, 430F stainless steel core and plugnut, and copper/silver shading coil for reliable actuation. Seals are available in TFE/P, EPDM, and/or PTFE to suit your application.

• 2-Way, pilot-operated design with diaphragm and piston for tight shutoff
• 3/4 inch threaded port connections on both inlet and outlet
• Brass body with heavy-duty core tube and stainless steel components
• Normally Closed (NC) valve, suitable for steam media
• Wide enclosure compatibility: NEMA 1/2/3/3S/4/4X, RedHat II
• Low power consumption: 10.1 Watts, Cv = 5
• Applications include commercial kitchen equipment, laundry, heating, steam atomization, sterilizers, and autoclaves
• UL, CSA, and CE rated for safety and compliance

With vertical/upright mounting, this valve is a reliable choice for demanding steam systems requiring durable construction and certified performance.
