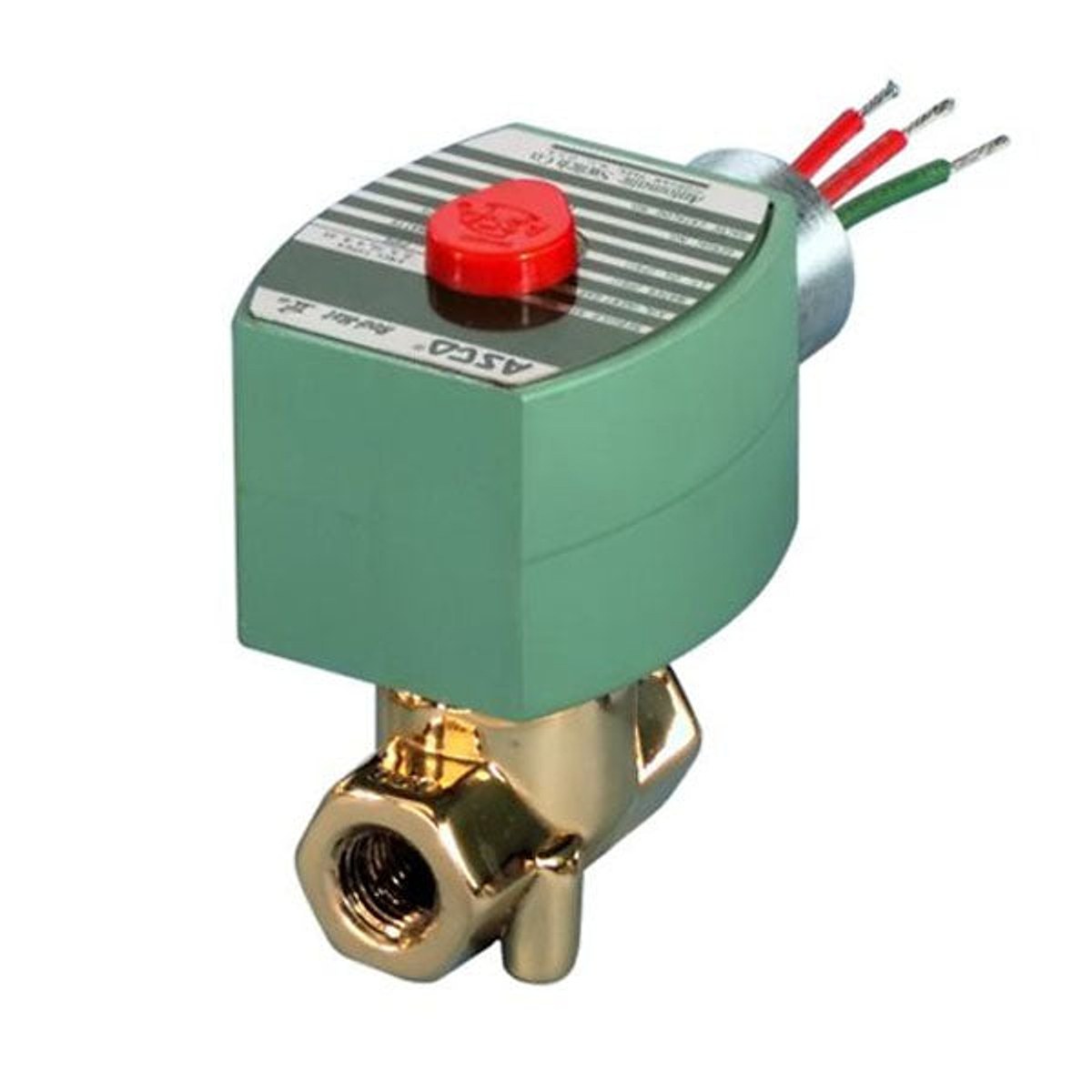

ASCO 8262H022 Solenoid Valve
ASCO 8262H022 Solenoid Valve
Low stock: 3 left
Couldn't load pickup availability
SKU:64973
View full details
![ASCO 8262H022 Solenoid Valve — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032649343198.png?v=1782833869&width=1445)
The ASCO 8262H022 Solenoid Valve is a reliable 2-way normally closed brass valve designed for general purpose fluid control. It features 1/4" NPT ports and dual AC voltage options (120/60 Vac or 110/50 Vac), making it suitable for a wide range of industrial and equipment applications.
Brass construction provides durability and corrosion resistance in typical process fluids. The two voltage options—120/60 Vac or 110/50 Vac—cover global installation needs, while the normally closed (N.C.) configuration ensures predictable shutdown when power is removed.
The 1/4" NPT ports simplify plumbing, and the compact form factor helps fit into tight control panels or manifold assemblies.
- 2-Way Normally Closed (N.C.) operation for simple on/off control
- Brass body for durability and corrosion resistance
- 1/4" NPT inlet/outlet ports for easy integration
- Dual AC voltage options: 120/60 Vac or 110/50 Vac
- General purpose design suitable for a variety of systems
Add the ASCO 8262H022 Solenoid Valve to ensure reliable, maintenance-friendly valve control across your equipment.
Specifications
| Type | 2-Way, Direct Acting |
|---|---|
| Pressure Rating | 0 to 185 PSI AC/130 PSI DC (Air/Inert Gas), 180 PSI AC/110 PSI DC (Water), 90 PSI AC/DC (Oil) |
| Temperature Rating | 180 Deg F AC/DC (Fluid) |
| Input Supply | 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz |
| Application | General Service, Automotive, Combustion, Dust Collector System, Heating Equipment, Press Room and Metal Stamping |
| Body Material | Brass |
| Port Connection | 1/4 Inch Threaded x 1/4 Inch Threaded |
| Standards | UL, CSA (Canada and US), CE, FM |
| Enclosure Type | NEMA 1/2/3/3S/4/4X |
| Includes | Water Tight, NBR Seal and Disc, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper/Silver Shading Coil, Orifice |
| Media | Air, Inert Gas, Water, Oil |
| Valve Position | NC |
| Mounting Details | Vertical/Upright Installation |
