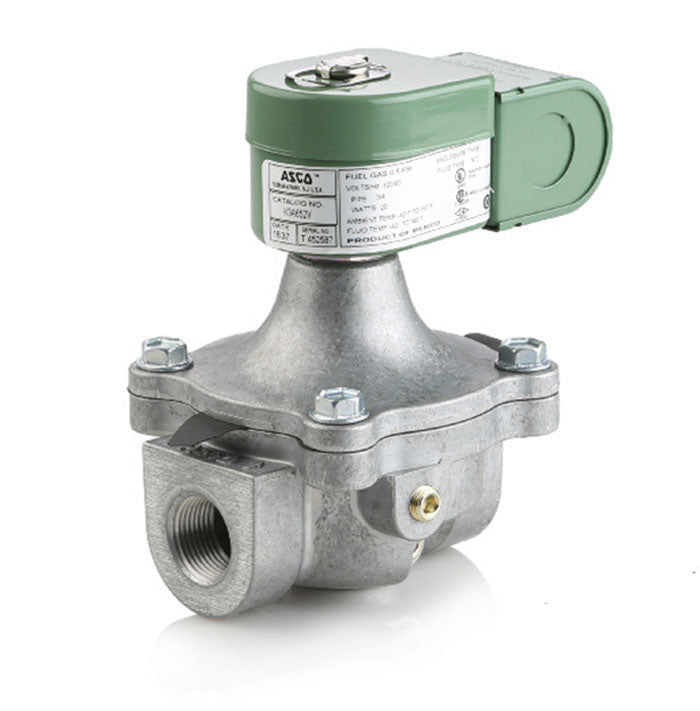

ASCO K3A682V Gas Shut-Off Valve

ASCO K3A682V Gas Shut-Off Valve is a 2-Way, high-pressure direct-acting, piloted-operated valve designed for commercial and industrial gas burner applications. The normally closed (NC) valve features 1-1/2 inch threaded ports and a rugged die-cast aluminum body with a NEMA 1 enclosure to withstand indoor service.

Powered by 120 Volt AC at 60 Hz, this valve handles fuel gas pressures from 0 to 5 PSI and is rated for ambient temperatures up to 77°F (fluid). Use in conjunction with combustion and heating equipment where reliable shut-off is essential. It is engineered to meet UL, CSA (US/Canada) and FM standards for safety and performance.

• Type: 2-Way, NC, high-pressure direct acting, piloted operated
• Ports: 1-1/2" threaded x 1-1/2" threaded
• Construction: Die-cast aluminum body, NEMA 1 enclosure
• Electrical: 120 VAC, 60 Hz, 20 W power rating
• Media & Pressure: Fuel gas, 0–5 PSI
• Standards: UL, CSA, FM
• Key components: NBR seal/disc, stainless steel core tube, copper shading coil, cork gasket, and more
• Cv: 27
