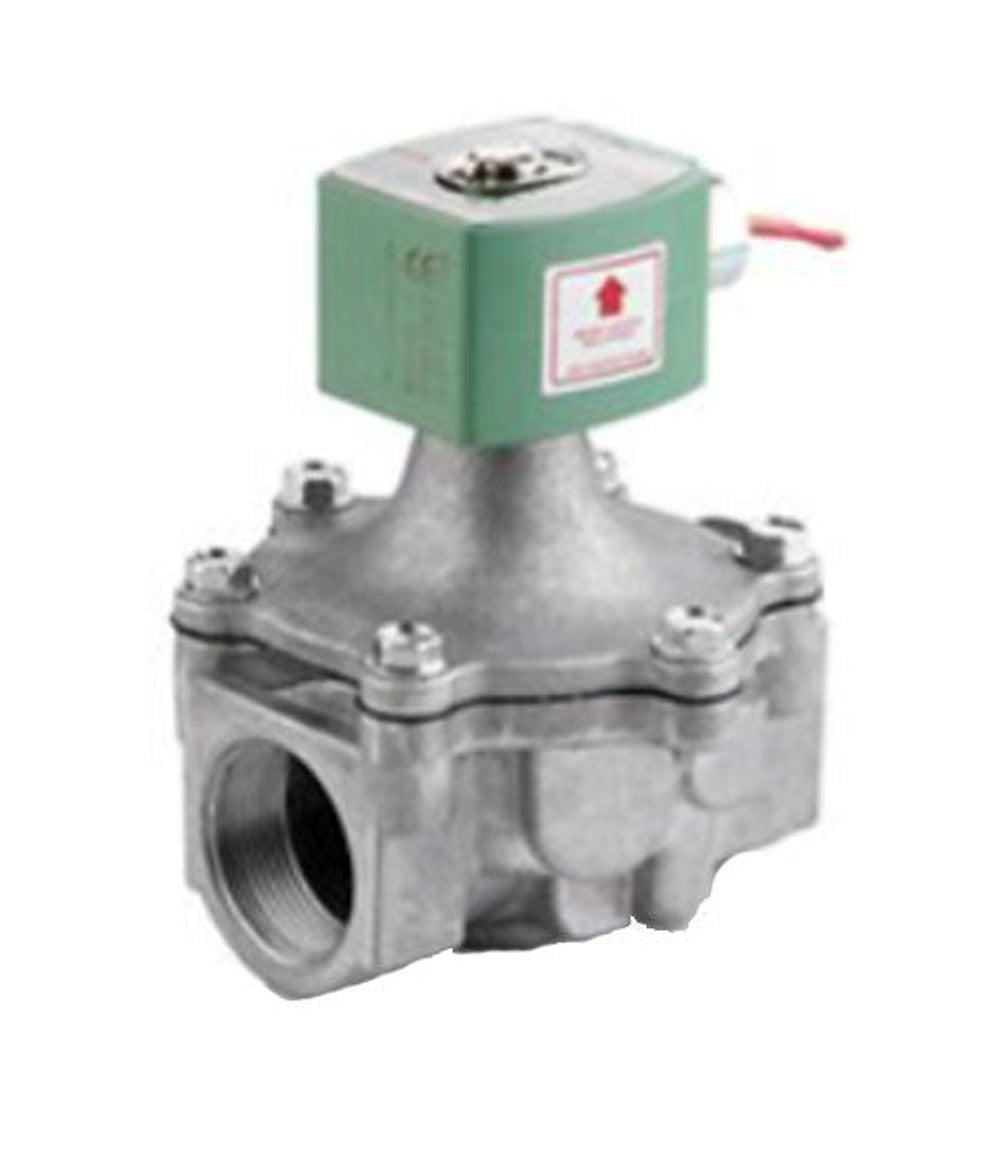

ASCO SERIES-215G*29679825 Solenoid Valve

The ASCO SERIES-215G*29679825 solenoid valve is a compact, lightweight 2-Way, direct-acting solenoid valve designed for air and fuel gas service. This valve uses direct acting/electrically/piloted operation and features 1/2 in. port connections with a normally closed (NC) valve position for reliable shut-off.

Engineered with an aluminum body and a rugged NEMA-rated enclosure (NEMA 1/2/3/3S/4/4X, RedHat II), it performs reliably in demanding environments. It supports 120 V AC at 60 Hz or 110 V AC at 50 Hz input, consuming 10.1 W (AC) or 11.6 W (DC), with temperature ratings of 125°F AC / 104°F DC and a pressure range of 0–50 psi AC / 0–25 psi DC. The valve is designed for vertical/upright installation and is suitable for air and vacuum service, meeting UL, CSA, CE, and FM standards.

• 2-Way, NC operation for fail-safe shut-off
• Aluminum body with durable NBR diaphragm and PTFE rider ring
• 1/2 in. threaded port connections for easy plumbing
• Wide enclosure ratings (UL/CSA/CE/FM) for flexible installation
• Low power consumption (10.1 W AC / 11.6 W DC)

Inclusions/Materials: 305 stainless steel core tube, 430F stainless steel core and plugnut, copper shading coil, disc holder, POM core guide, and Orifice.
