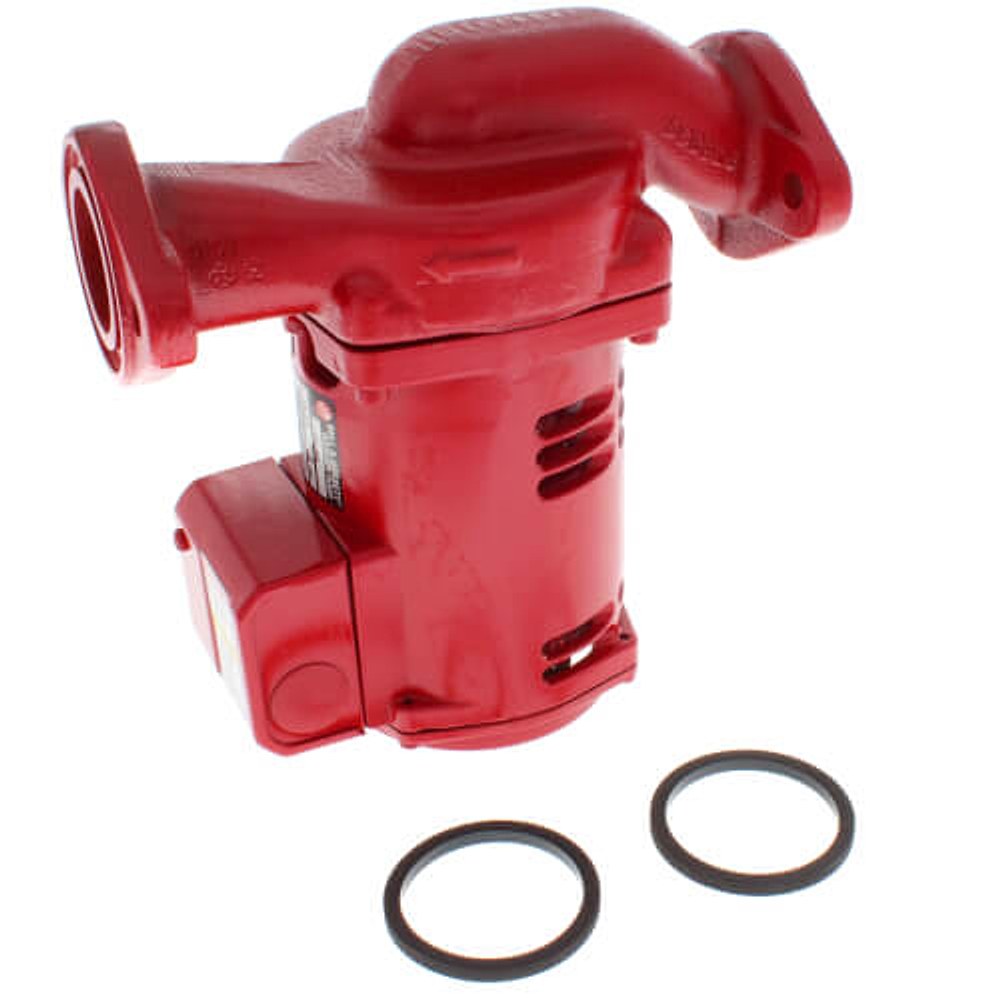

Bell & Gossett PL-45 Circulator Pump

Bell & Gossett PL-45 Circulator Pump

$703.32 USD
$703.32 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

36341

View full details

The Bell & Gossett PL-45 Circulator Pump is a rugged, in-line circulator designed for reliable hydronic service. With a wet-rotor design, cast iron casing, and maintenance-free bearings, it powers radiant heating, geothermal systems, and other closed-loop setups.

Designed for versatility, the PL-45 handles a wide range of suction and discharge sizes and is built for long-term performance in demanding environments.

  • In-line circulator with wet rotor for quiet, efficient operation
  • Cast iron housing, stainless steel shaft, and glass-filled PPS impeller
  • 115 V AC, 60 Hz, 1-Phase, 1/6 HP, 3300 RPM
  • Flow 0–50 GPM; discharge head 0–30 ft
  • End connections: Threaded x Threaded; suction/discharge sizes 1", 1-1/4", 1-1/2"
  • Temperature rating 225°F; pressure rating 150 PSI
  • Maintenance-free design with sealed precision bearings; open drip-proof motor
  • UL-listed for US and Canada
  • Applications: Hydronic systems, radiant heating, geothermal heating and cooling

Specifications

TypeIn-Line, Wet Rotor
Pressure Rating150 PSI
Temperature Rating225 Deg F
Input Supply115 Volt AC 60 Hertz 1-Phase 2.1 Amp
Flow Rate0 to 50 GPM
Power Rating1/6 HP
ApplicationHydronic System, Radiant, Geothermal Heating and Cooling System
End ConnectionThreaded x Threaded
Discharge Size1 Inch, 1-1/4 Inch, 1-1/2 Inch
Suction Size1 Inch, 1-1/4 Inch, 1-1/2 Inch
Speed3300 RPM
Discharge Head0 to 30 Foot
StandardsUL (Canada and US)
IncludesSealed Precision Permanently Lubricated Steel Ball Bearing, Maintenance-Free, EPDM Elastomer, Balanced Alloy Steel Rotor
Impeller MaterialGlass Filled Polyphenylene Sulfide
Casing MaterialCast Iron
Motor TypePermanently Oil Lubricated, Open Drip-Proof
Shaft MaterialStainless Steel
Shaft Seal DetailsCarbon on Silicon Carbide Mechanical Seal
