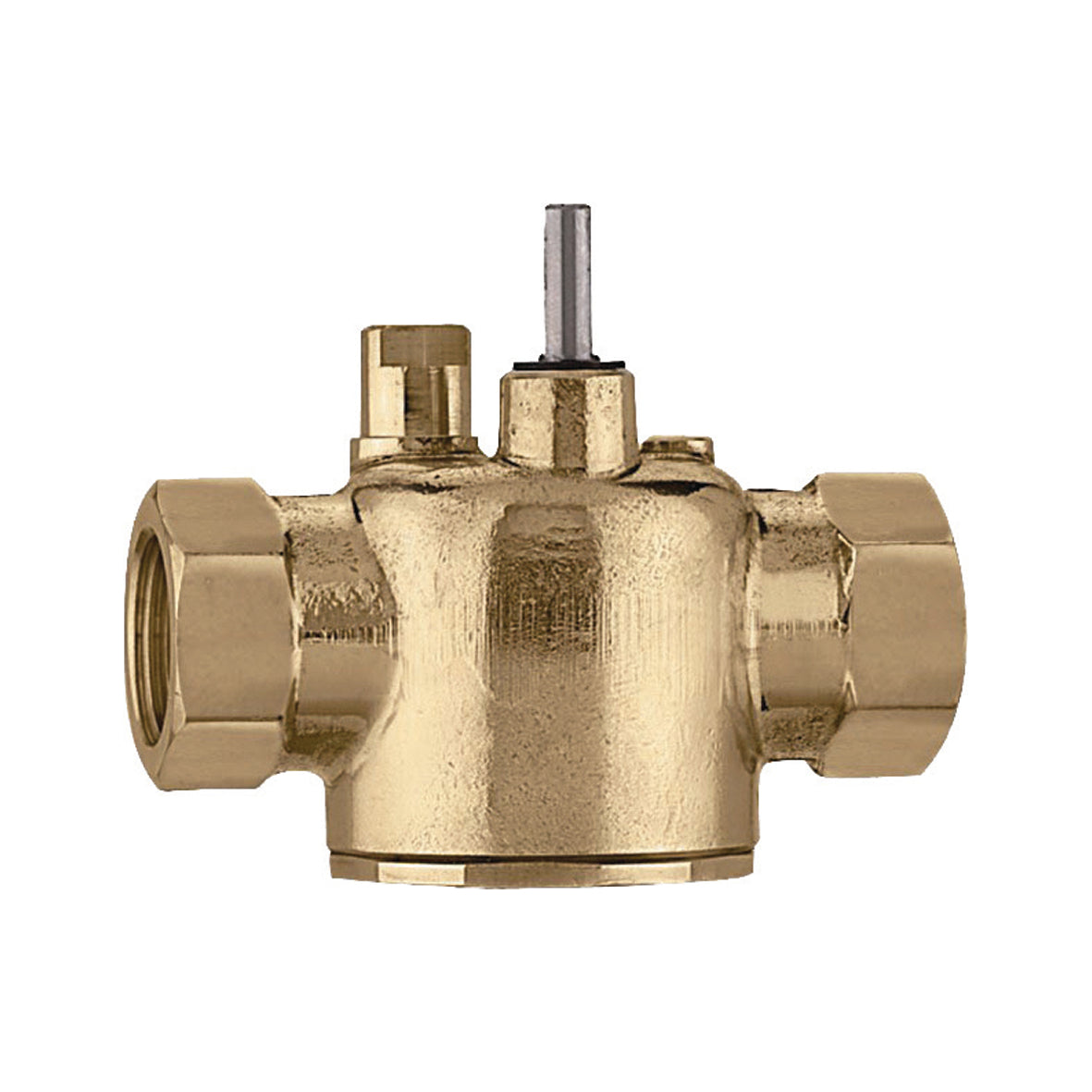

Caleffi Z200537 Motorized Zone Valve

The Caleffi Z200537 Motorized Zone Valve is a 2-Way, 3/4 inch valve designed for precise HVAC zoning with electric spring-return actuation. The brass body, stainless steel stem, and EPDM rubber seal deliver durable performance for hot and chilled water in heating and air conditioning systems. This model features a normally open (NO) valve position and fast timing for responsive control.

Key specifications ensure reliable operation in demanding environments: a 24 V AC input, 60-second open and 6-second close timing, and a 7 CV flow capacity. With lead-free construction and compliance to UL (Canada and US), NSF/ANSI 372, and ICC-ES PMG standards, the Z200537 is built for code-compliant, long-lasting service. The push-button mounting simplifies installation and servicing in tight mechanical spaces.

• Type: 2-Way, normally open
• Size & connections: 3/4" nominal, soldered x soldered
• Actuation: Electric spring-return; 24 V AC, 0.4 A
• Materials: Brass body; stainless steel stem; EPDM seal and paddle; machined brass seat
• Performance: 60 s open, 6 s close; 7 CV; 5 W
• Media & temp: Hot or chilled water; 32–240 °F
• Pressure: 300 PSI static, 15 PSI steam
• Standards: UL (US & Canada), NSF/ANSI 372, ICC-ES PMG; lead-free
• Electrical & mounting: 18" wire lead; push-button mount
