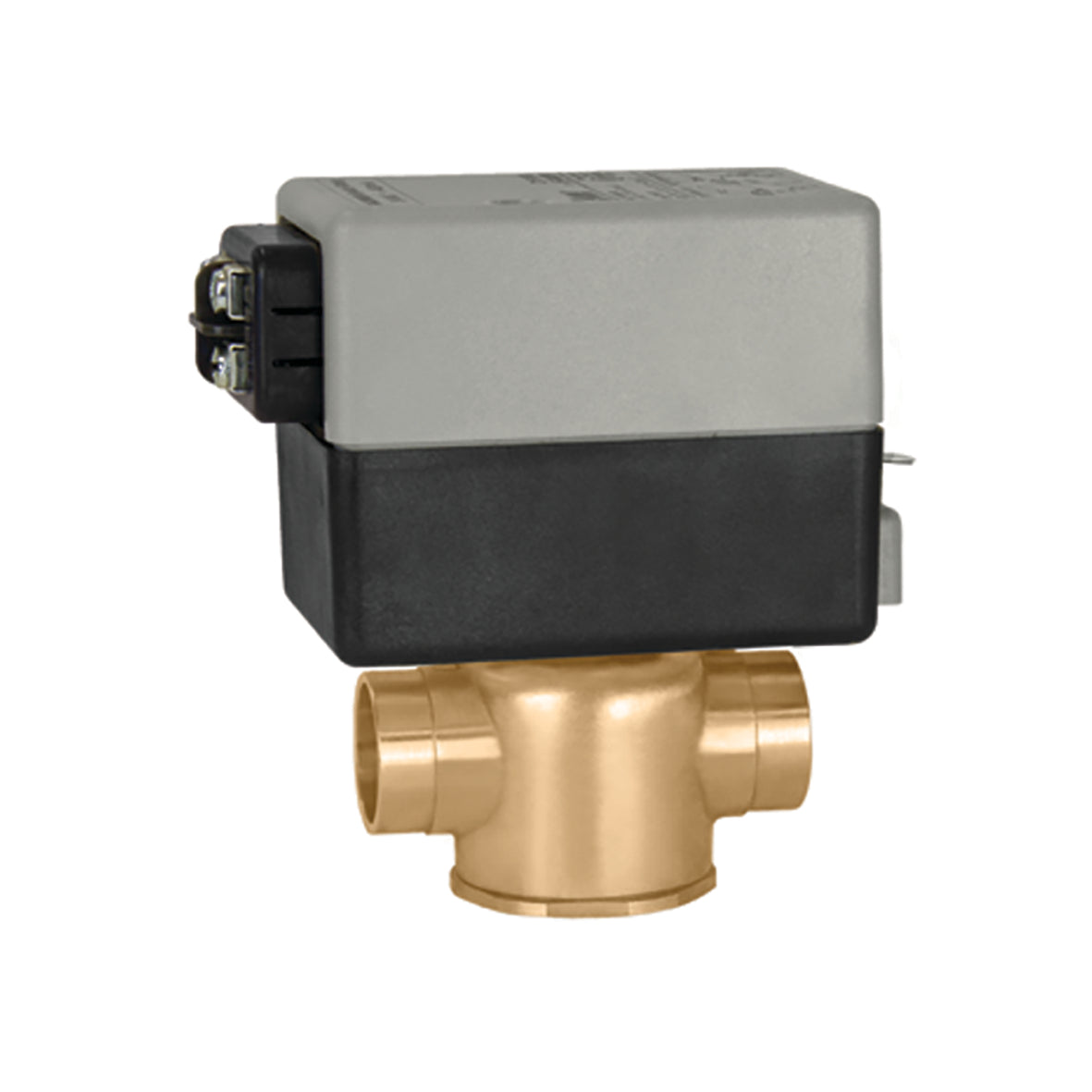

Caleffi Z55 Motorized Zone Valve

The Caleffi Z55 Motorized Zone Valve delivers precise zone control for heating and cooling systems. This 2-Way valve, with a 3/4 inch nominal size, uses soldered end connections and a spring-return electric actuator for reliable, automatic operation.

Designed for hot and chilled water applications, it features a brass body, stainless steel stem, EPDM seal and paddle, and a machined brass seat for tight shutoff. The valve is normally open (NO) and offers fast timing with 60 seconds to open and 6 seconds to close, making it ideal for modern HVAC setups. It operates on 24V AC at 50/60 Hz (0.4 A) and handles up to 300 PSI. With a flow capacity of 7.5 CV and a compact push-button mounting, it's ready for simple integration into your control system.

• 2-Way motorized zone valve with programmable operation
• Nominal size 3/4", end connections: soldered x soldered
• Actuation: spring-return, electric; valve position: normally open (NO)
• Brass body, stainless steel stem, EPDM rubber seal and paddle
• Machined brass seat; media: hot/chilled water
• Temperature range: 32–240°F; pressure rating: 300 PSI
• Power: 5 W, 7 VA; input: 24V AC, 50/60 Hz, 0.4 A
• Lead-free construction; wire lead length: 18 in; push-button mounting
• Certifications: UL (Canada/US), NSF/ANSI 372, ICC-ES PMG
