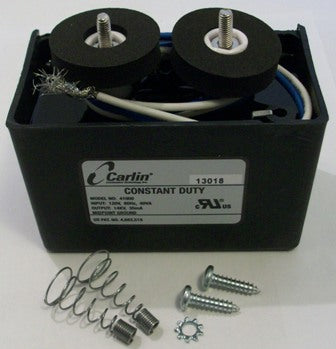

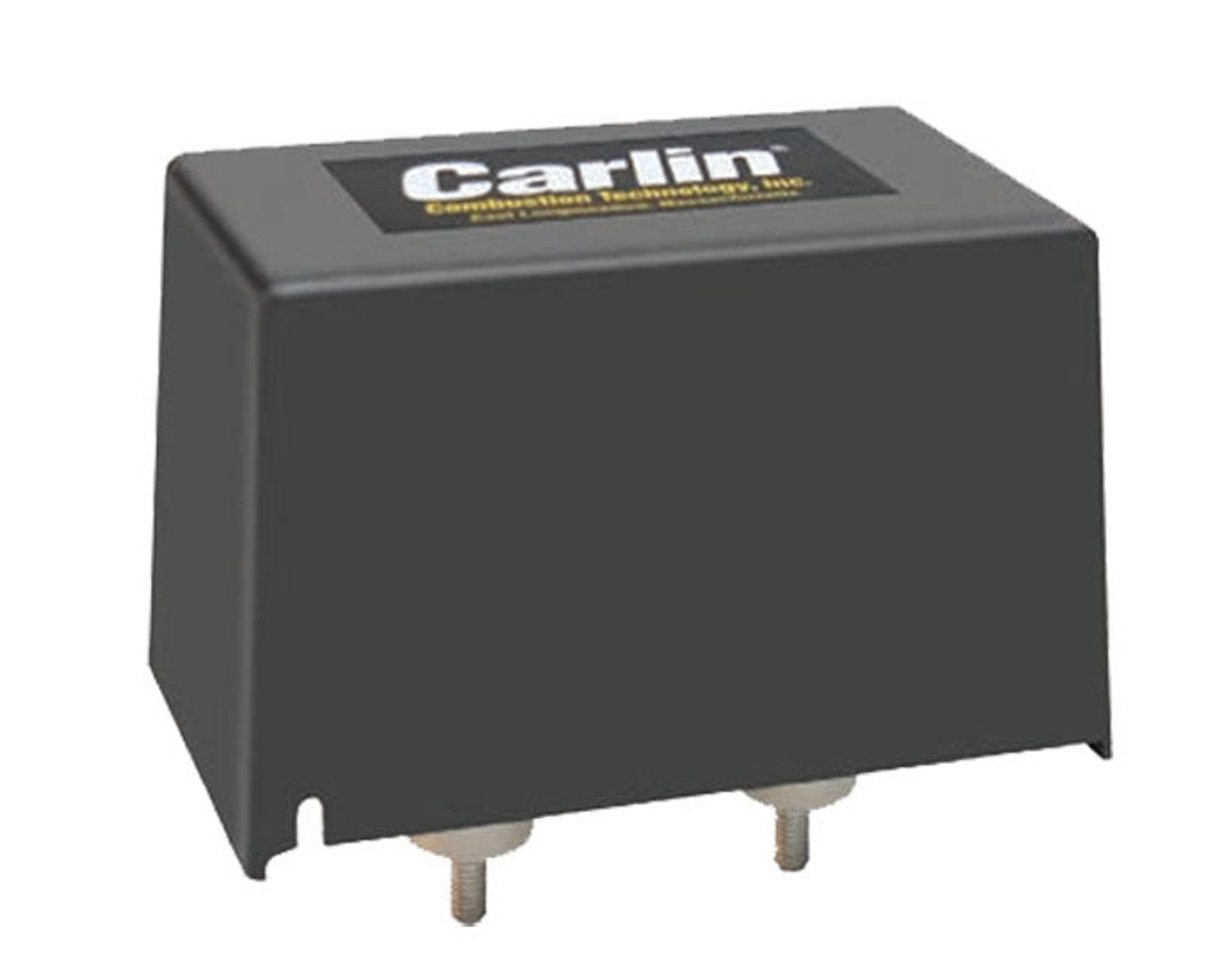

Carlin 41000S Oil Burner Solid State Electronic Igniter

The Carlin 41000S Oil Burner Solid State Electronic Igniter is a continuous-duty electronic igniter designed for oil burners. Engineered for use on the 801CRD, 1050FFD, and 1150FFD oil burners, this high-performance igniter delivers reliable ignition when you need it most.

Specifications include 120V AC, 60 Hz input with a 40 VA rating, and an ignition output of 14 kV at 35 mA RMS, providing strong and consistent spark across firing cycles.

• Continuous-duty operation for long service life in demanding boiler setups.
• Compatibility designed for use on 801CRD, 1050FFD, and 1150FFD oil burners.
• Electrical specs 120V AC, 60 Hz input, 40 VA.
• Ignition output 14 kV, 35 mA RMS for reliable spark.
• Physical size 3-1/2 in W × 2-3/16 in D × 2-1/4 in H.
• Operating temperature 32–140°F.
• Safety approvals UL (US and Canada), CSA.
• Mounting note Excludes baseplate.

Compact and easy to install, this igniter is built to meet safety and performance standards while fitting typical furnace enclosures. Its solid-state design minimizes wear, reduces maintenance, and ensures dependable ignition cycles.
