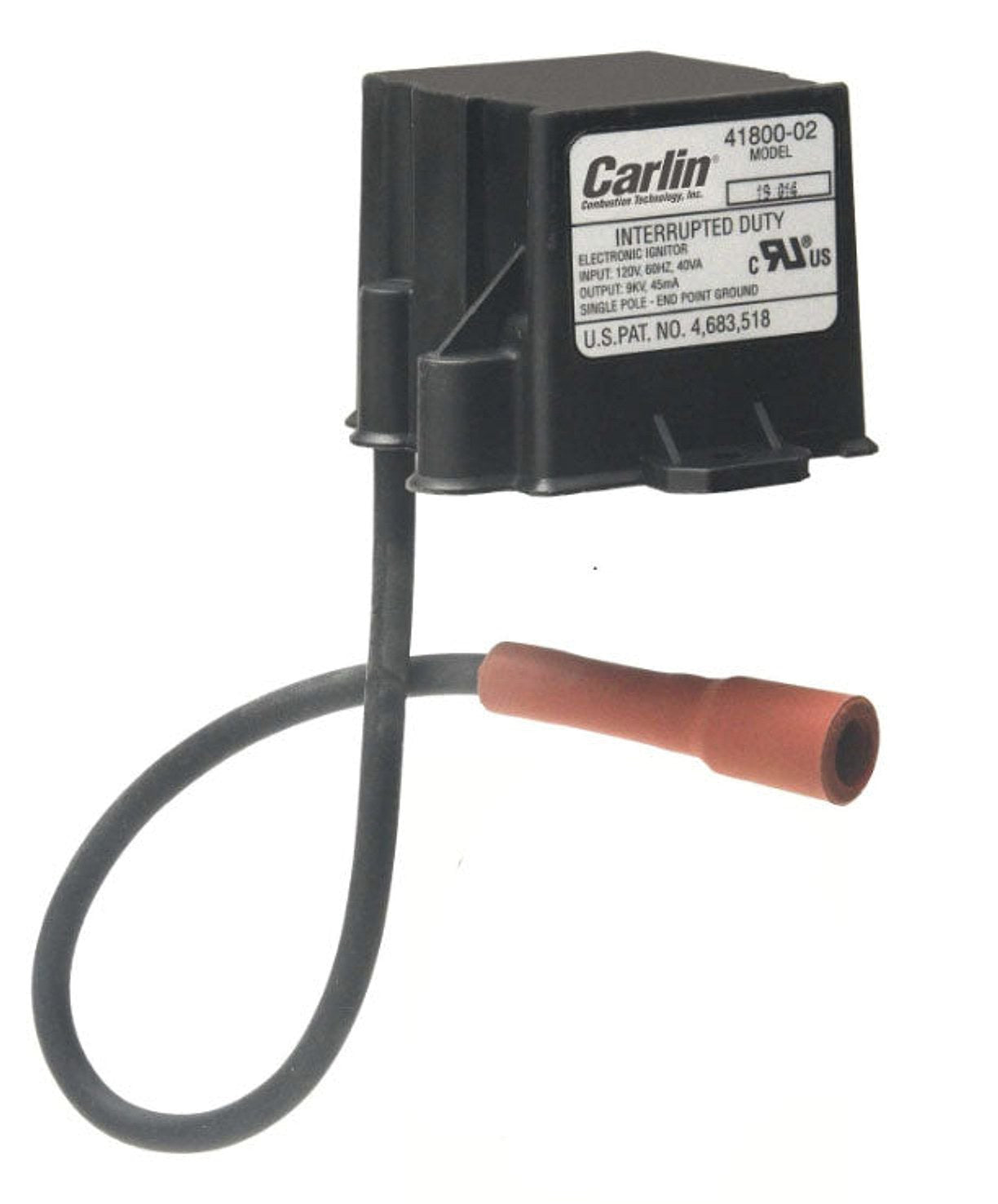

Carlin 4180002S1 Gas Burner Solid State Electronic Igniter

Carlin 4180002S1 Gas Burner Solid State Electronic Igniter is engineered for reliable ignition in EZGAS and EZGAS PRO gas burners. This solid-state igniter delivers consistent ignition during interrupted-duty operation, helping reduce flame-out and improve overall burner performance.

Designed for professional installation, it uses 120 Volt AC 60 Hz power with about 40 VA input. The igniter outputs a high-energy spark of 9 kilovolts with 45 mA RMS, and supports a 15 kilovolt DC bottom exit. The unit features a 10-inch lead, a compact body measuring 3-1/2 inches W x 2-3/16 inches D x 2-1/4 inches H, and an operating temperature range from 32 to 140°F. It is UL (Canada and US) and CSA approved and ships excluding the baseplate.

• Compatibility: Used on EZGAS and EZGAS PRO gas burners for reliable solid-state ignition.
• Electrical performance: 120 V AC, 60 Hz, ~40 VA input; ignition output 9 kV with 45 mA RMS; DC bottom exit 15 kV.
• Durability and safety: Wire rated for up to 150°C with a 10" lead and robust solid-state design.
• Physical specs: 3-1/2" W x 2-3/16" D x 2-1/4" H; operating range 32–140°F.
• Compliance: UL (Canada and US) and CSA approved; excludes baseplate.
