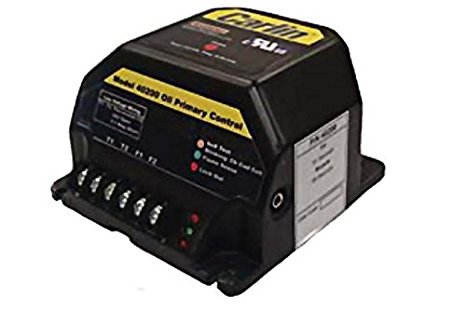

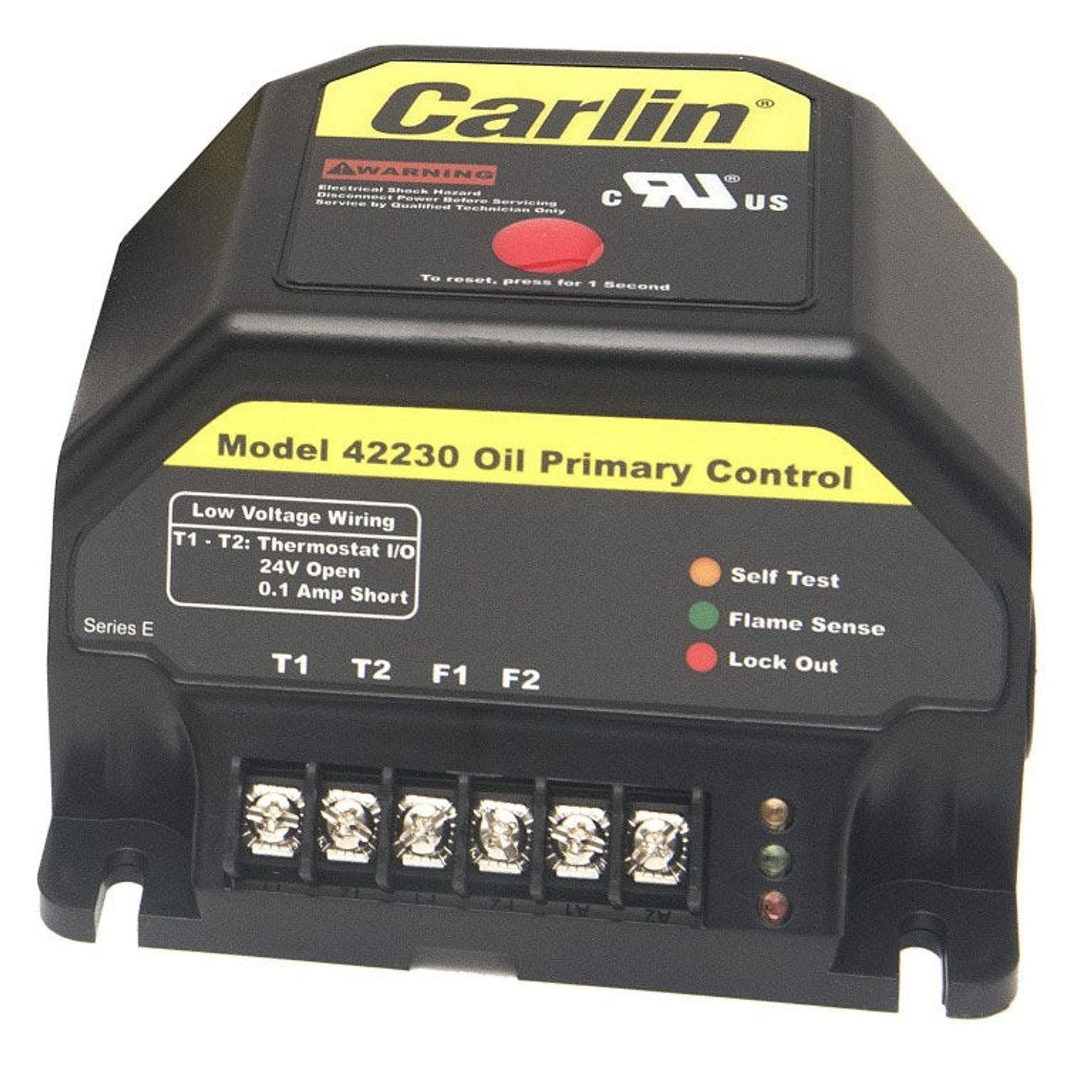

Carlin 4223002S Oil Burner Primary Control

The Carlin 4223002S Oil Burner Primary Control delivers reliable flame establishment and safe operation for oil burners. It features a flame establishing period of 30 seconds and a pilot type interrupted design for dependable startup. This oil burner control is rated for 120 Volt AC at 60 Hz and UL approved for both US and Canada.

Designed for rugged performance, it operates in ambient temperatures from 32 to 140 °F and mounts in a 4-inch by 4-inch junction box. Key electrical specs keep your system efficient and safe: 10 VA power, motor load up to 10 A at full load (60 A locked rotor), igniter load of 500 VA at 120 V AC, thermostat anticipator current of 0.2 A, and a fast flame failure response time of 1.3 seconds.

• Oil burner primary control for reliable ignition and flame management
• Flame establishing period 30 seconds with pilot type interrupted
• Voltage and current 120 VAC, 60 Hz; motor load 10 A / 60 A; igniter load 500 VA
• Safety and approvals UL (Canada and US)
• Mounting 4" x 4" junction box; operating temperature 32–140 °F
