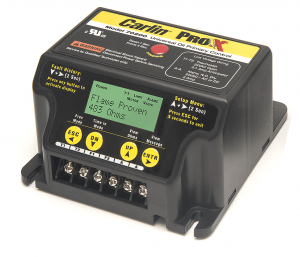

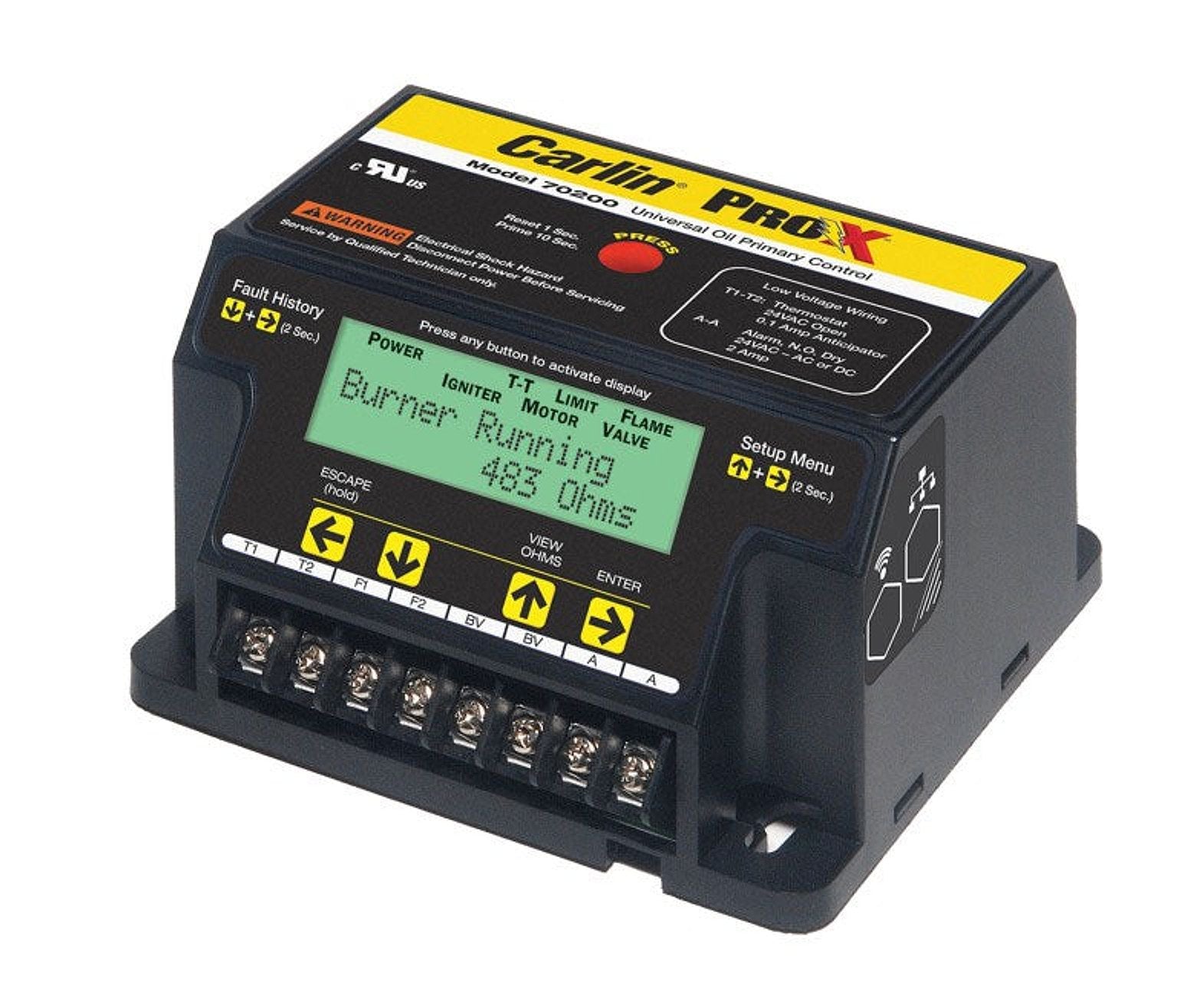

Carlin 70200S Oil Burner Primary Control

Carlin 70200S Oil Burner Primary Control, a programmable, microprocessor-based primary control, delivers reliable oil burner operation. This universal, fully adjustable control supports pilot-type intermittent operation and is UL approved for both the US and Canada.

Designed for versatile installation, it handles 120 Volt AC at 60 Hz, with an operating range of 32 to 140°F and a compact 4x4 inch junction box mounting. The built-in display simplifies setup and monitoring, while its robust load ratings ensure compatibility with typical oil burner systems.

• Type: Programmable, microprocessor based, universal, fully adjustable
• Pilot type: Intermittent/Interrupted
• Voltage: 120V AC, 60 Hz
• Power rating: 9 VA
• Motor load: 10 A full load / 60 A locked rotor
• Igniter load: 120V AC, 60 Hz, 500 VA
• Valve load: 2 A
• Vent load: 120V AC, 60 Hz, 0.1 A
• Line heater load: 1 A
• Alarm contact rating: 24V AC/DC, 2 A
• Thermostat anticipator current: 0.1 A AC
• Mounting: 4 x 4 inch junction box
• Includes display
• Approval: UL-listed for Canada and US
